Chamfer and Radius Quick Jig
More videos are available in the Video tab below.

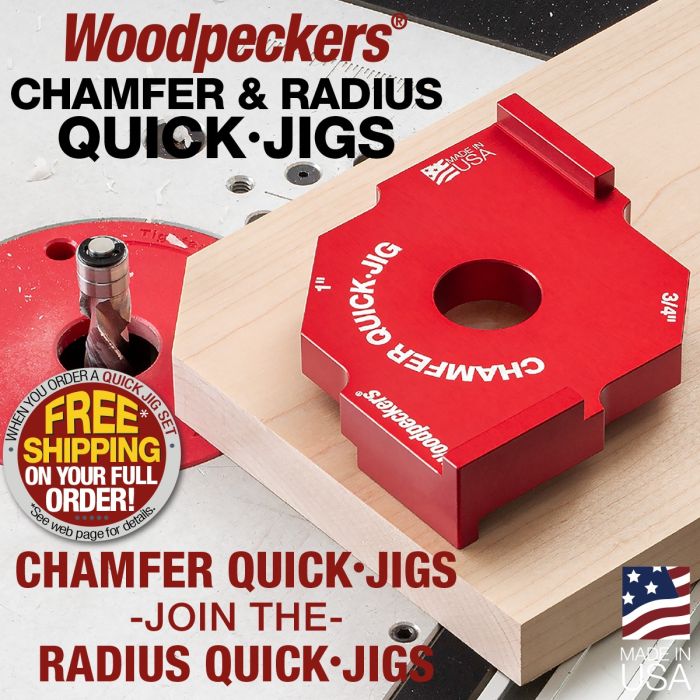

With Woodpeckers Chamfer and Radius Quick-Jigs you can forget your jig saw and belt sander routine to soften the corners of your projects. Instead, accurately create clean, precise chamfered or radiused corners in seconds using your router table. Projects look fully finished with the corners softened. Sometimes you want a little, sometimes you want a lot, but you always want “some". These jigs handle the job effortlessly.
When We Say “Quick-Jig” We Mean Really Quick
Woodpeckers Chamfer and Radius Quick Jigs are so quick and easy to use you don’t even need a clamp or fastener to use them. Just select the corner profile you want, locate the shoulders of the jig onto the workpiece, and use a bearing-piloted flush trim bit to create your perfect corner. Designed for safe use on a router table, you just hold the jig in perfect position with one hand while you advance the workpiece with the other. Gentle curves at the beginning and end of each pattern lead the router bit in and out of the cuts.
Get A Perfect Corner Every Time. With radii from 1/8” to 1-1/2” in 1/8” increments and chamfers from 1/4" to 1-1/2" in 1/4" increments, you can forget searching through your collection of paint cans and jelly jars to find the corner that fits your project. You can easily “eye-ball” the finished look by simply dropping the different jigs in place. Each Quick-Jig is meticulously machined to exacting tolerances from aircraft grade aluminum, anodized for surface protection and laser engraved with each radius clearly marked.
Ordering Options. Each jig has two profiles. There are 6 radius jigs and 3 chamfer jigs. The radius jigs have been offered previously as a OneTIME Tool, and are now joining our permanent product line-up. If you already have the radius jigs, you can buy just the new chamfer jigs and the full-set Rack-It. If you want the radius set without the chamfers, that's available, too. Then, there's the complete set with all radius jigs, all chamfer jigs and the full-set Rack-It. If you have a very specific need, each jig is available individually, as well.
Like all Woodpeckers products, the Chamfer and Radius Quick-Jigs are precisely machined and carefully inspected in our Strongsville, Ohio, facility (just south of Cleveland).
| Country of Manufacture | United States |
|---|
