Woodsmith Edge Clamps Plans

SKU
WOODSMITH-EDGE-CLAMPS-PLAN-GROUP

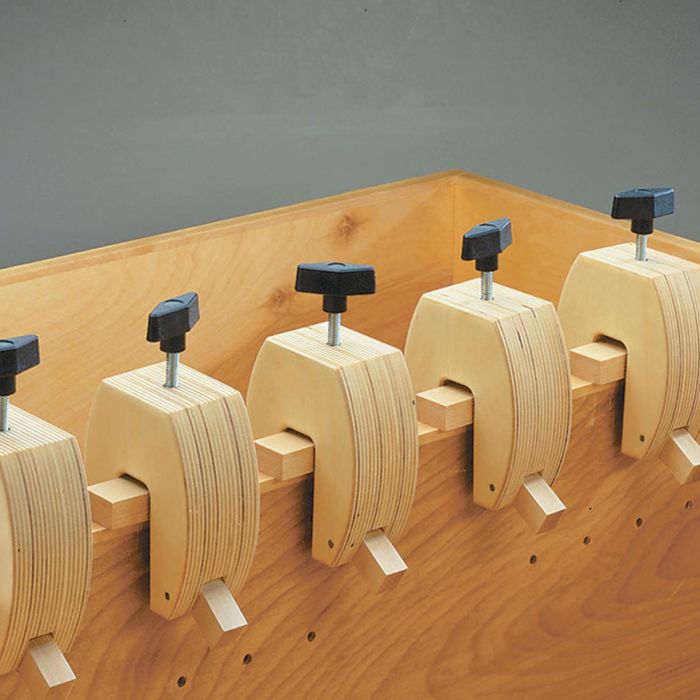

These shop-made edge clamps are bound to come in handy when gluing hardwood edging on plywood. If you build a lot of projects that use 3/4" plywood, you know covering the exposed edges of the plywood with strips of solid wood edging is a fairly routine matter. In spite of that, gluing on these narrow strips of wood always seems to require more fiddling around than you’d like. If it’s a long piece for instance, you have to drag out an armload of heavy clamps to apply pressure along the entire length of the strip. And even then, aligning the edging with one hand and positioning the clamps with the other is a bit tricky. To simplify this process, I built a set of six small edge clamps. These clamps make it easy to align the edging and apply pressure at the same time.

We offer the Woodsmith Edge Clamps plan as a downloadable PDF or a printed format that we ship to you.

Grouped product items
Product Image Product Name Price
Edge Clamps - Standard Plan -  PDF Download Edge Clamps - Standard Plan - PDF Download SKU: SN04206PL
Plans will be emailed to you, please allow approximately 1 hour for processing. Phone orders cannot be accepted.

Add to Wish List Add to Compare
$7.95
Edge Clamps - Standard Plan (Shipped to You) Edge Clamps - Standard Plan (Shipped to You) SKU: SN04206PLPR

Add to Wish List Add to Compare
$16.35

Learn how to build shop-made edge clamps that make it easy to align and apply pressure when gluing hardwood edging on plywood.

Step-by-step instructions, exploded views, materials list, and more—these plans have everything you need to build your own Edge Clamps.

What you get (Downloadable PDFs):

Standard Plan:

  • 8.5” x 11” PDF of 7 printable (digital) pages of step-by-step instructions
  • 25 full-color photos and illustrations
  • Retail sources for project supplies

What you get (Printed & Shipped):

Standard Plan:

  • 7 pages of step-by-step instructions
  • 25 full-color photos and illustrations
  • Retail sources for project supplies
  • 8.5” x 11” print shipped to you
