Woodsmith Table Saw Miter Sled Standard Plan & Premium Shop Drawings

SKU
WOODSMITH-TABLE-SAW-MITER-SLED-PLANS-GROUP

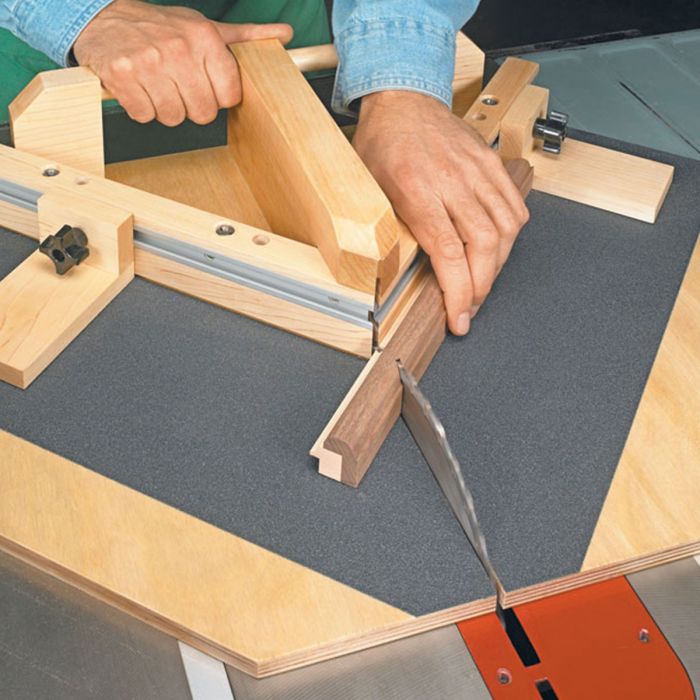

If you’ve ever been frustrated trying to cut gap-free miter joints on the table saw, this miter sled is for you. The sled has two bars that ride in the miter slots on your table saw. This makes it solid and slide smoothly for consistent, accurate cuts. Once you get the fences calibrated, you can cut dozens of perfect miters. A T-track in the fence allows you to use a stop block to guarantee that your workpieces will be exactly the same length.

You can purchase the Woodsmith Table Saw Miter Sled standard plan or the supplemental premium shop drawings as a downloadable PDF or in a printed format that we ship to you. We highly recommend purchasing both the standard plan and the supplemental premium shop drawings for more in-depth instructions and greater detail.

Grouped product items
Product Image Product Name Price
Woodsmith Table Saw Miter Sled Standard Plan – 8.5” x 11” PDF Download Woodsmith Table Saw Miter Sled Standard Plan – 8.5” x 11” PDF Download SKU: SN08534PL
Plans will be emailed to you, please allow approximately 1 hour for processing. Phone orders cannot be accepted. Download plans are non-refundable.

Add to Wish List Add to Compare
$12.95
Woodsmith Table Saw Miter Sled Premium Shop Drawings Supplement – 11” x 17” PDF Download Woodsmith Table Saw Miter Sled Premium Shop Drawings Supplement – 11” x 17” PDF Download SKU: SN08534SD
Plans will be emailed to you, please allow approximately 1 hour for processing. Phone orders cannot be accepted. Download plans are non-refundable.

Add to Wish List Add to Compare
$15.95
Table Saw Miter Sled - Standard Plan (Shipped to You) Table Saw Miter Sled - Standard Plan (Shipped to You) SKU: SN08534PLPR

Add to Wish List Add to Compare
$20.75
Table Saw Miter Sled - Premium Shop Drawing (Shipped to You) Table Saw Miter Sled - Premium Shop Drawing (Shipped to You) SKU: SN08534SDPR

Add to Wish List Add to Compare
$33.91

Miter joints don't have to be a trial-and-error chore. With this miter sled, you can cut perfect joints every time.

Step-by-step instructions, exploded views, materials list, and more—these plans have everything you need to build your own Table Saw Miter Sled.

What you get (Downloadable PDFs):

Standard Plan:

  • 8.5” x 11” PDF of 9 printable (digital) pages of step-by-step instructions
  • 26 full-color photos, illustrations and exploded views
  • Shop-tested tips for perfect results
  • Retail source for project supplies

Premium Shop Drawings:

  • 11” x 17” printable PDF
  • More detailed drawings of every part and every assembly that supplements the standard plan
  • More exploded views for a better understanding of the project



What you get (Printed & Shipped):

Standard Plan:

  • 9 pages of step-by-step instructions
  • 26 full-color photos, illustrations and exploded views
  • Shop-tested tips for perfect results
  • Retail source for project supplies
  • 8.5” x 11” print shipped to you

Premium Shop Drawings:

  • More detailed drawings of every part and every assembly
  • More exploded views for a better understanding of the project
  • A large, 24” wide print on premium paper shipped to you



Click here to learn more about the Premium Shop Drawings
