Woodsmith Table Saw Dovetail Jig Plan

SKU
WOODSMITH-TABLE-SAW-DOVETAILJIG-GROUP

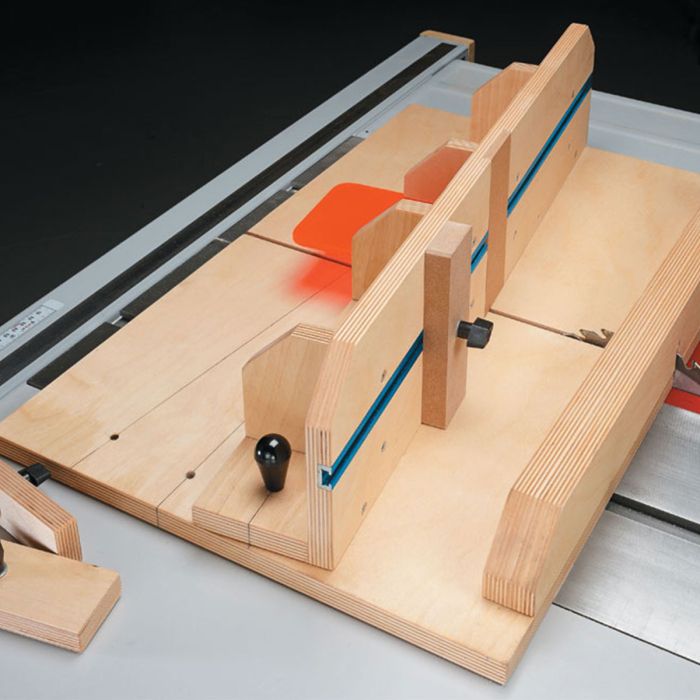

A table saw isn’t the first tool you think of when it comes to cutting through dovetails. Okay, maybe it’s not a tool you think of using at all. So it might surprise you to learn that you can use your table saw to make perfect-fitting through dovetails. All you need is a simple shop-built jig and a saw blade ground to leave perfectly angled corners. Best of all, this technique results in through dovetails with that distinct, “hand-cut” look. The jig is similar to a crosscut sled but the fence is adjustable to allow for cutting both the pins and tails. Besides the jig, you’ll also need a special saw blade for your table saw.

We offer the Woodsmith Table Saw Dovetail Jig plan as a downloadable PDF or a printed format that we ship to you.

Grouped product items
Product Image Product Name Price
Woodsmith Table Saw Dovetail Jig Standard Plan – 8.5” x 11” PDF Download Woodsmith Table Saw Dovetail Jig Standard Plan – 8.5” x 11” PDF Download SKU: SN10846PL
Plans will be emailed to you, please allow approximately 1 hour for processing. Phone orders cannot be accepted. Download plans are non-refundable.

Add to Wish List Add to Compare
$12.95
Woodsmith Table Saw Dovetail Jig Standard Plan – 8.5” x 11” Print (Shipped to You) Woodsmith Table Saw Dovetail Jig Standard Plan – 8.5” x 11” Print (Shipped to You) SKU: SN10846PLPR

Add to Wish List Add to Compare
$21.95

Cut through dovetails on the table saw? You bet. It’s quick, easy, and accurate.

Step-by-step instructions, exploded views, materials list, and more—these plans have everything you need to build your own Table Saw Dovetail Jig.

What you get (Downloadable PDFs):

Standard Plan:

  • 8.5” x 11” PDF of 9 printable (digital) pages of step-by-step instructions
  • 40 full-color photos illustrations and exploded views
  • Complete step-by-step instructions for using the jig
  • Retail sources for hardware and supplies


What you get (Printed & Shipped):

Standard Plan:

  • 9 pages of step-by-step instructions
  • 40 full-color photos illustrations and exploded views
  • Complete step-by-step instructions for using the jig
  • Retail sources for hardware and supplies
  • 8.5” x 11” print shipped to you
More Information
Country of Manufacture United States

WARNING: Wood Dust created by Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection.
