A pin router is a great way to “carve” out decorative reliefs, custom-fitted recesses and signs. And when you get right down to it, a pin router is a very basic machine. There’s a router bit that lines up with a small pin in the base. The pin helps guide a template that’s attached to the bottom of the workpiece. The problem is most pin routers are large pieces of equipment typically found in a production shop. I was looking for a scaled-down version I could use in my own shop, and I came up with this handy jig.

We offer the Woodsmith Shop-Made Pin Router plan as a downloadable PDF or a printed format that we ship to you.

Grouped product items
Product Image Product Name Price
Woodsmith Shop-Made Pin Router Standard Plan – 8.5” x 11” PDF Download Woodsmith Shop-Made Pin Router Standard Plan – 8.5” x 11” PDF Download SKU: SN05718PL
Plans will be emailed to you, please allow approximately 1 hour for processing. Phone orders cannot be accepted.

Add to Wish List Add to Compare
$12.95
Woodsmith Shop-Made Pin Router Standard Plan – 8.5” x 11” Print (Shipped to You) Woodsmith Shop-Made Pin Router Standard Plan – 8.5” x 11” Print (Shipped to You) SKU: SN05718PLPR

Add to Wish List Add to Compare
$18.35

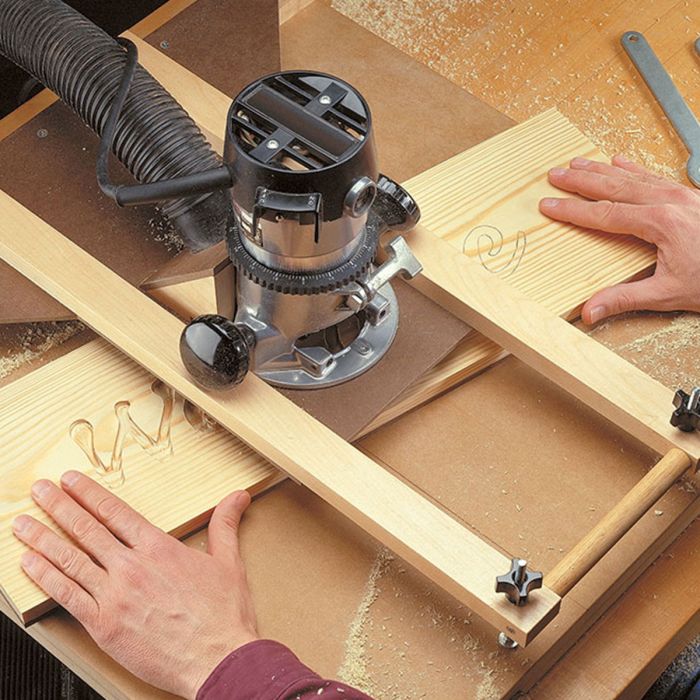

With a hand-held router and this jig, you can rout a wide variety of decorative designs in your projects. A metal pin and a shop-made template guide the workpiece while you rout the design.

Step-by-step instructions, exploded views, materials list, and more—these plans have everything you need to build your own Shop-Made Pin Router.

What you get (Downloadable PDFs):

Standard Plan:

  • 8.5” x 11” PDF of 6 printable (digital) pages of step-by-step instructions
  • 34 full-color photos illustration and exploded views
  • Instructions for making templates and using the jig
  • Shop-tested guarantee from Woodsmith and ShopNotes magazines



What you get (Printed & Shipped):

Standard Plan:

  • 6 pages of step-by-step instructions
  • 34 full-color photos illustration and exploded views
  • Instructions for making templates and using the jig
  • Shop-tested guarantee from Woodsmith and ShopNotes magazines
  • 8.5” x 11” print shipped to you
