Woodsmith Shop-Made Beam Compass Plan

SKU
WOODSMITH-SHOP-MADE-BEAM-COMPASS-GROUP

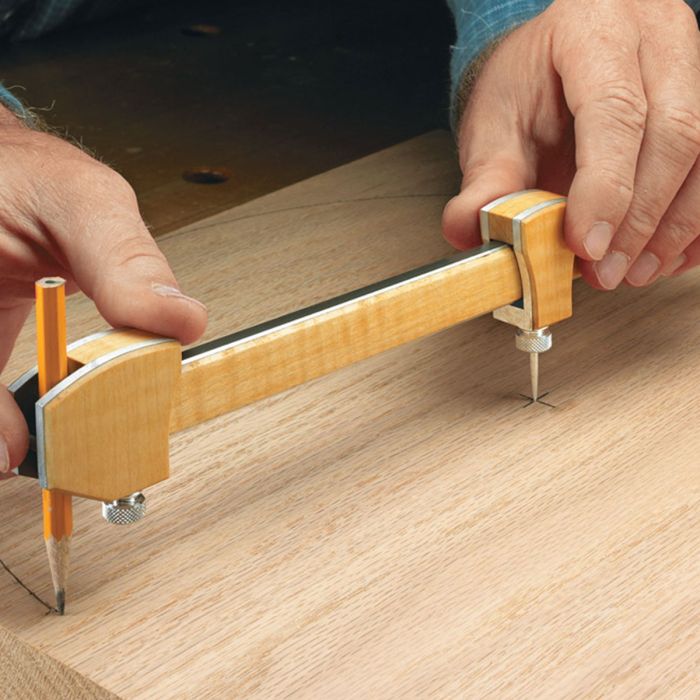

When it comes to laying out large arcs and circles for a project, nothing beats a beam compass. The beauty of this tool is you’re not limited by the distance between points as you would be with a standard compass. For larger circles, you just use a longer beam. For the beam compass shown here, anodized aluminum gives it a unique look and durability. And wood veneer adds the look and feel of an heirloom tool. After spending a little time in the shop, you’ll have a handy tool you’ll reach for often.

We offer the Woodsmith Shop-Made Beam Compass plan as a downloadable PDF or a printed format that we ship to you.

Grouped product items
Product Image Product Name Price
Woodsmith Shop-Made Beam Compass Standard Plan – 8.5” x 11” PDF Download Woodsmith Shop-Made Beam Compass Standard Plan – 8.5” x 11” PDF Download SKU: SN09730PL
Plans will be emailed to you, please allow approximately 1 hour for processing. Phone orders cannot be accepted.

Add to Wish List Add to Compare
$12.95
Woodsmith Shop-Made Beam Compass Standard Plan – 8.5” x 11” Print (Shipped to You) Woodsmith Shop-Made Beam Compass Standard Plan – 8.5” x 11” Print (Shipped to You) SKU: SN09730PLPR

Add to Wish List Add to Compare
$20.75

Aluminum and figured wood come together in this practical layout tool you can build in a weekend.

Step-by-step instructions, exploded views, materials list, and more—these plans have everything you need to build your own Shop-Made Beam Compass.

What you get (Downloadable PDFs):

Standard Plan:

  • 8.5” x 11” PDF of 5 printable (digital) pages of step-by-step instructions
  • 27 full-color photos illustrations and exploded views
  • Shop-tested tips and techniques
  • Cutting diagram
  • Retail sources for hardware and supplies



What you get (Printed & Shipped):

Standard Plan:

  • 5 pages of step-by-step instructions
  • 27 full-color photos illustrations and exploded views
  • Shop-tested tips and techniques
  • Cutting diagram
  • Retail sources for hardware and supplies
  • 8.5” x 11” print shipped to you
