Woodsmith Double-Duty Planer Sled Standard Plan & Premium Shop Drawings

SKU
WOODSMITH-PLANER-SLED-PLANS-GROUP

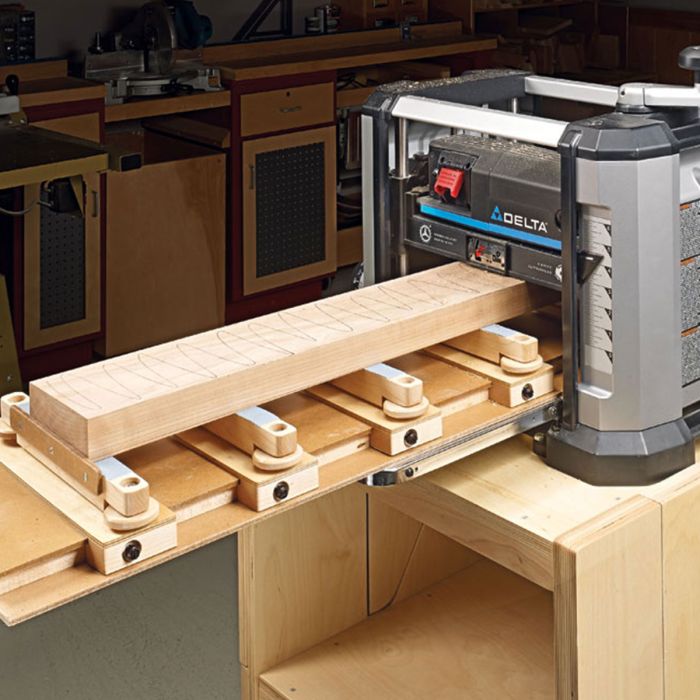

Unfortunately, warped boards are a challenge woodworkers encounter all too often. But if a board isn‘t warped too badly, it can be salvaged with a planer and this sled. This sled supports the board so it doesn’t flex under the pressure of the feed rollers. The board ends up with a flat face. The sled is sized to fit a 12" planer and will cradle a board up to 48" long. It has five levelers that can be positioned along the length of the board and adjusted up and down.

You can purchase the Woodsmith Double-Duty Planer Sled standard plan or the supplemental premium shop drawings as a downloadable PDF or in a printed format that we ship to you. We highly recommend purchasing both the standard plan and the supplemental premium shop drawings for more in-depth instructions and greater detail.

Grouped product items
Product Image Product Name Price
Woodsmith Double-Duty Planer Sled Standard Plan – 8.5” x 11” PDF Download Woodsmith Double-Duty Planer Sled Standard Plan – 8.5” x 11” PDF Download SKU: SN13720PL
Plans will be emailed to you, please allow approximately 1 hour for processing. Phone orders cannot be accepted.

Add to Wish List Add to Compare
$12.95
Woodsmith Double-Duty Planer Sled Premium Shop Drawings Supplement – 11” x 17” PDF Download Woodsmith Double-Duty Planer Sled Premium Shop Drawings Supplement – 11” x 17” PDF Download SKU: SN13720SD
Plans will be emailed to you, please allow approximately 1 hour for processing. Phone orders cannot be accepted.

Add to Wish List Add to Compare
$15.95
Woodsmith Double-Duty Planer Sled Premium Shop Drawings Supplement – 24” Wide Print (Shipped to You) Woodsmith Double-Duty Planer Sled Premium Shop Drawings Supplement – 24” Wide Print (Shipped to You) SKU: SN13720PLPR

Add to Wish List Add to Compare
$18.35
Woodsmith Double-Duty Planer Sled Standard Plan – 8.5” x 11” Print (Shipped to You) Woodsmith Double-Duty Planer Sled Standard Plan – 8.5” x 11” Print (Shipped to You) SKU: SN13720SDPR

Add to Wish List Add to Compare
$51.88

Salvage your warped boards with this no-fuss planer sled.

Step-by-step instructions, exploded views, materials list, and more—these plans have everything you need to build your own Double-Duty Planer Sled.

What you get (Downloadable PDFs):

Standard Plan:

  • 8.5” x 11” PDF of 6 printable (digital) pages of step-by-step instructions
  • 19 full-color photos, illustrations and exploded views
  • Retail sources for hardware and supplies
  • Materials list, cutting diagrams
  • Shop-tested guarantee from the editors of Woodsmith magazine

Premium Shop Drawings:

  • 11” x 17” printable PDF
  • More detailed drawings of every part and every assembly that supplements the standard plan
  • More exploded views for a better understanding of the project


What you get (Printed & Shipped):

Standard Plan:

  • 6 pages of step-by-step instructions
  • 19 full-color photos, illustrations and exploded views
  • Retail sources for hardware and supplies
  • Materials list, cutting diagrams
  • Shop-tested guarantee from the editors of Woodsmith magazine
  • 8.5” x 11” print shipped to you

Premium Shop Drawings:

  • More detailed drawings of every part and every assembly
  • More exploded views for a better understanding of the project
  • A large, 24” wide print on premium paper shipped to you



Click here to learn more about the Premium Shop Drawings
