Woodsmith Mobile Miter Saw Station Plan
To support long workpieces, a pair of extension wings attach to the ends of the station. For portability, these wings can be “tucked” away inside the case. And when stored, the wings provide built-in handles to make it easy to lift and move the miter saw. Most miter saws fences are too short making it hard to position long workpieces. So, we added a pair of rails to extend the fences. We also added a stop system that slides in slots cut in the fence rails for dead-on, repeatable accuracy.
We offer the Woodsmith Mobile Miter Saw Station plan as a downloadable PDF or a printed format that we ship to you.

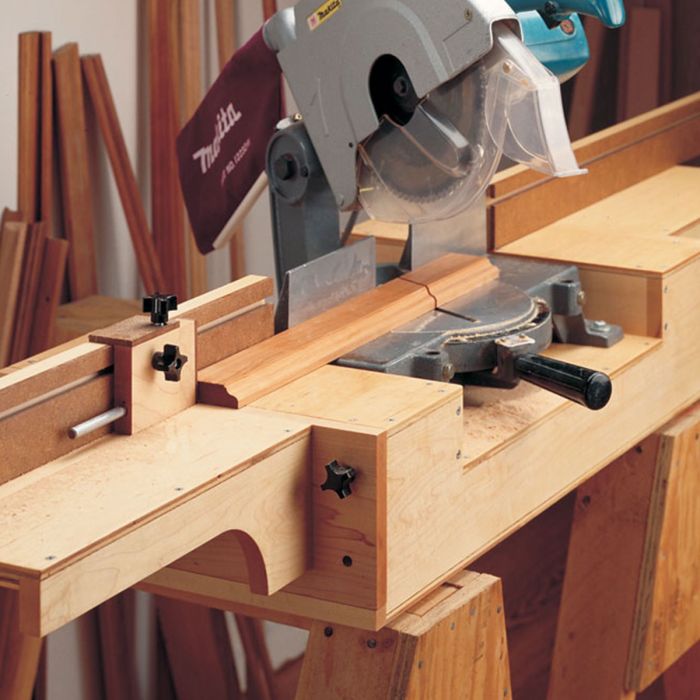

With this portable saw station, your miter saw works even harder. It combines extension wings for long stock with a stop system for accurate repeat cuts.
Step-by-step instructions, exploded views, materials list, and more—these plans have everything you need to build your own Mobile Miter Saw Station.
What you get (Downloadable PDFs):
Standard Plan:
- 8.5” x 11” PDF of 8 printable (digital) pages of step-by-step instructions
- 38 full-color photos and illustrations and explosed views
- Materials list and cutting diagram
What you get (Printed & Shipped):
Standard Plan:
- 8 pages of step-by-step instructions
- 38 full-color photos and illustrations and explosed views
- Materials list and cutting diagram
- 8.5” x 11” print shipped to you
| Country of Manufacture | United States |
|---|
