Woodsmith Miter Saw Station Plan

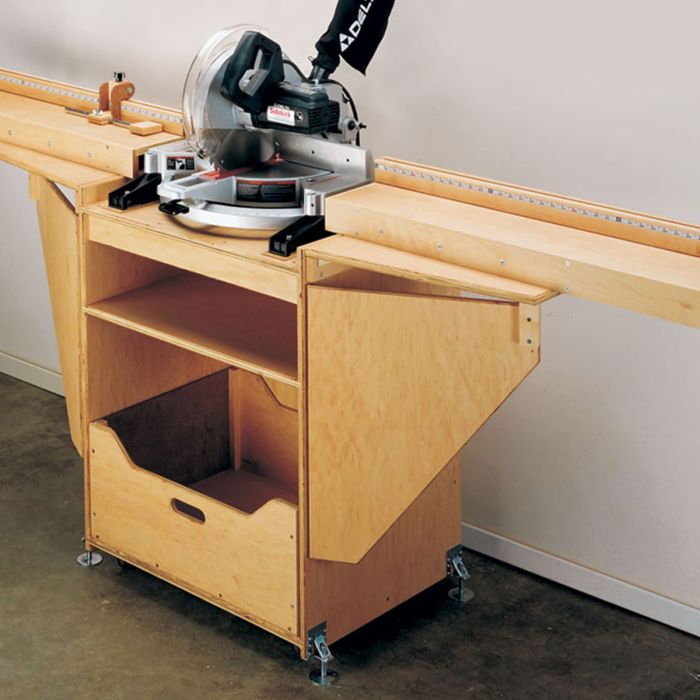

With the miter saw mounted to the center cabinet, two long extension tables provide sturdy support on each side when you’re cutting long workpieces to length. But there’s more to these tables than holding up a workpiece. Each extension has a fence that will accept an adjustable stop block. A tape measure on each fence then lets you cut workpieces to length without measuring or marking them beforehand. And to save space when the saw is not in use, the extension tables fold to create a compact tool stand that can roll out of the way for storage, or out to the driveway to tackle the next job.
We offer the Woodsmith Miter Saw Station plan as a downloadable PDF or a printed format that we ship to you.
Fold-out tables, a stop block, and a mobile base extend the usefulness of your miter saw. There’s also a convenient storage space for cutoffs.
Step-by-step instructions, exploded views, materials list, and more—these plans have everything you need to build your own Miter Saw Station.
What you get (Downloadable PDFs):
Standard Plan:
- 8.5” x 11” PDF of 10 printable (digital) pages of step-by-step instructions
- 50 full-color photos and illustrations
- Shop-tested tips for working with plywood
- Cutting diagram and materials list
What you get (Printed & Shipped):
Standard Plan:
- 10 pages of step-by-step instructions
- 50 full-color photos and illustrations
- Shop-tested tips for working with plywood
- Cutting diagram and materials list
- 8.5” x 11” print shipped to you
| Country of Manufacture | United States |
|---|
