Woodsmith Machinist’s Chest Standard Plan & Premium Shop Drawings
From the basic measuring and marking implements to your favorite hand tools, this chest will keep everything in its place. You can also see why the design is a classic. The case features finger-joint construction and a frame and panel back and front. These elements, combined with the vintage hardware, lend authenticity to the antique appearance.
You can purchase the Woodsmith Machinist’s Chest standard plan or the supplemental premium shop drawings as a downloadable PDF or in a printed format that we ship to you. We highly recommend purchasing both the standard plan and the supplemental premium shop drawings for more in-depth instructions and greater detail.

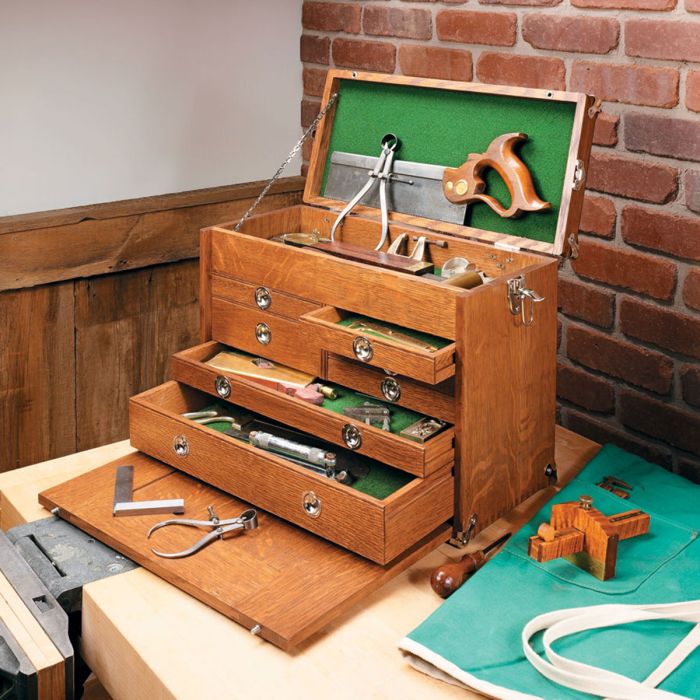

This turn-of-the-century tool chest made from rift sawn oak is as useful for storing tools today as it was 100 years ago.
Step-by-step instructions, exploded views, materials list, and more—these plans have everything you need to build your own Machinist’s Chest.
What you get (Downloadable PDFs):
Standard Plan:
- 8.5” x 11” PDF of 15 printable (digital) pages of step-by-step instructions
- Over 60 full-color photos and illustrations
- Bonus technique sections for making finger joints, stub tenon and groove joints, and locking rabbet joints
Premium Shop Drawings:
- 11” x 17” printable PDF
- More detailed drawings of every part and every assembly that supplements the standard plan
- More exploded views for a better understanding of the project
What you get (Printed & Shipped):
Standard Plan:
- 15 pages of step-by-step instructions
- Over 60 full-color photos and illustrations
- Bonus technique sections for making finger joints, stub tenon and groove joints, and locking rabbet joints
- 8.5” x 11” print shipped to you
Premium Shop Drawings:
- More detailed drawings of every part and every assembly
- More exploded views for a better understanding of the project
- A large, 24” wide print on premium paper shipped to you
| Country of Manufacture | United States |
|---|
