Woodsmith Lathe-Driven Belt Sander Standard Plan & Premium Shop Drawings

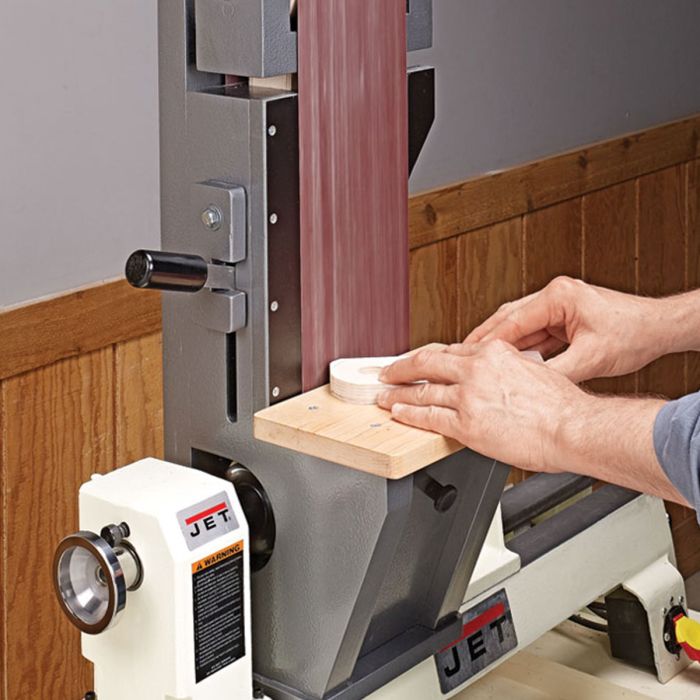

Why not put your lathe to use for other tasks? This belt sander clamps onto the bed of the lathe. The lower roller mounts directly to the lathe spindle for power. Sliding the tailstock with a live center up to the opposite end of the roller provides support as the roller spins. The ingenious part of the belt sander is the mechanism that provides tension and tracking for the belt. A pair of compression springs and a lever-operated cam assembly provide the proper amount of tension to keep the belt tight. And a studded knob at the top of the belt sander makes it a simple task to adjust the belt to keep it perfectly centered. At first it may appear to be a complicated project, but this plan breaks it down into manageable assemblies. It’s really pretty simple when you take it one step at a time.
You can purchase the Woodsmith Lathe-Driven Belt Sander standard plan or the supplemental premium shop drawings as a downloadable PDF or in a printed format that we ship to you. We highly recommend purchasing both the standard plan and the supplemental premium shop drawings for more in-depth instructions and greater detail.
Transform your lathe into a handy sanding station with this key add-on.
Step-by-step instructions, exploded views, materials list, and more—these plans have everything you need to build your own Lathe-Driven Belt Sander.
What you get (Downloadable PDFs):
Standard Plan:
- 8.5” x 11” PDF of 12 printable (digital) pages of step-by-step instructions
- More than 60 full-color exploded views, photos, and illustrations
- Includes shop-tested techniques to ensure your success
- Cutting diagram and materials list
- Retail sources for project supplies
Premium Shop Drawings:
- 11” x 17” printable PDF
- More detailed drawings of every part and every assembly that supplements the standard plan
- More exploded views for a better understanding of the project
What you get (Printed & Shipped):
Standard Plan:
- 12 pages of step-by-step instructions
- More than 60 full-color exploded views, photos, and illustrations
- Includes shop-tested techniques to ensure your success
- Cutting diagram and materials list
- Retail sources for project supplies
- 8.5” x 11” print shipped to you
Premium Shop Drawings:
- More detailed drawings of every part and every assembly
- More exploded views for a better understanding of the project
- A large, 24” wide print on premium paper shipped to you
| Country of Manufacture | United States |
|---|
