Woodsmith Knock-Down Shelving System Plan

SKU
WOODSMITH-KNOCK-DOWN-SHELVING-SYSTEM-GROUP

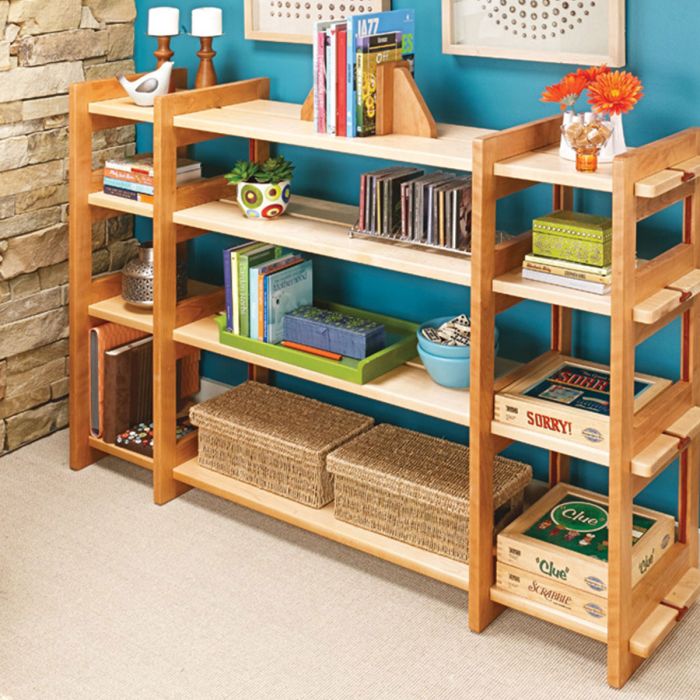

This little knock-down shelving system was designed to be simple and useful. As you can see, there isn’t a whole lot in the way of parts to this setup. A set of four frames provide the basic structure, while shelves that are each made from two thick maple planks pass between the frames. The unique part of the system is how it’s assembled. When they’re butted together, the shelf planks are narrower than the openings in the frame and pass through them easily. Then, driving hardwood keys into grooves at the ends of the planks spreads them apart. Notches cut in the outside edges engage with the frame stiles to lock it all together. If you ever need to take the shelving system apart to move it, you can simply tap out the keys, remove the shelves, and it all breaks down neatly into a tidy stack of frames and boards for storage or transport.

We offer the Woodsmith Knock-Down Shelving System plan as a downloadable PDF or a printed format that we ship to you.

Grouped product items
Product Image Product Name Price
Woodsmith Knock-Down Shelving System Standard Plan – 8.5” x 11” PDF Download Woodsmith Knock-Down Shelving System Standard Plan – 8.5” x 11” PDF Download SKU: WS22930PL
Plans will be emailed to you, please allow approximately 1 hour for processing. Phone orders cannot be accepted.

Add to Wish List Add to Compare
$9.95
Woodsmith Knock-Down Shelving System Standard Plan – 8.5” x 11” Print (Shipped to You) Woodsmith Knock-Down Shelving System Standard Plan – 8.5” x 11” Print (Shipped to You) SKU: WS22930PLPR

Add to Wish List Add to Compare
$20.75

This set of shelves uses a clever design of interlocking notches and keys that make it a snap to set up or take down. It’s sure to be a fun weekend build.

Step-by-step instructions, exploded views, materials list, and more—these plans have everything you need to build your own Knock-Down Shelving System.

What you get (Downloadable PDFs):

Standard Plan:

  • 8.5” x 11” PDF of 8 printable (digital) pages of shop-tested step-by-step instructions
  • 35 full-color photos, illustrations, and exploded views
  • Cutting diagram and materials list
  • Retail sources for project supplies



What you get (Printed & Shipped):

Standard Plan:

  • 8 pages of shop-tested step-by-step instructions
  • 35 full-color photos, illustrations, and exploded views
  • Cutting diagram and materials list
  • Retail sources for project supplies
  • 8.5” x 11” print shipped to you
