Woodsmith Drill Press Belt Sander Plan

SKU
WOODSMITH-DRILL-PRESS-BELT-GROUP

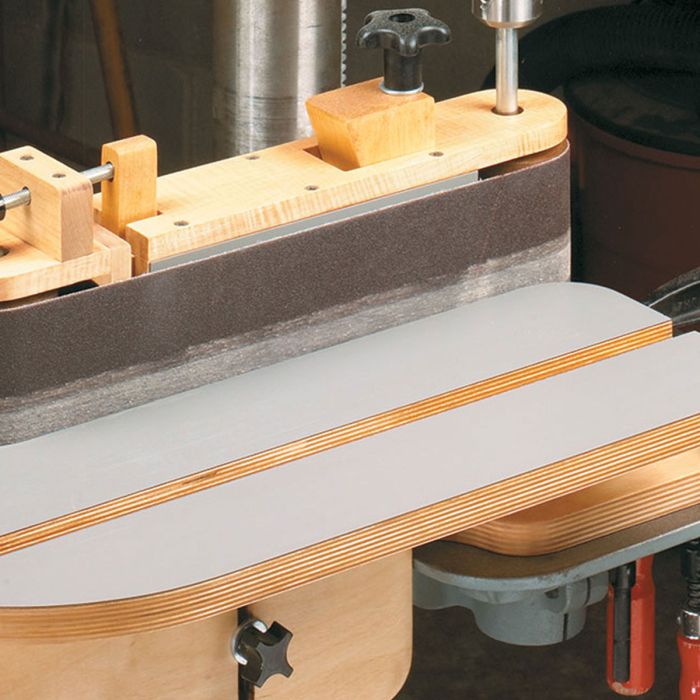

Sanding is one of those tasks that few people enjoy. So any time you can speed up the job, so much the better. The trouble is that stationary belt sanders take up a lot of shop space. And they can be rather expensive. But with the drill press belt sander, you can enjoy all the benefits of a large, stationary sander without having to invest in a new piece of equipment or give up valuable shop space. What’s unique about this belt sander is that it’s powered by another tool that you probably already have in your shop — a drill press. The sander is simply clamped to the table of the drill press. Then a shaft on top of the sander is chucked up in the drill press — just like a drill bit. With a flip of the drill press switch, the sanding belt takes off and you’re ready to start sanding.

We offer the Woodsmith Drill Press Belt Sander plan as a downloadable PDF or a printed format that we ship to you.

Grouped product items
Product Image Product Name Price
Woodsmith Drill Press Belt Sander Standard Plan – 8.5” x 11” PDF Download Woodsmith Drill Press Belt Sander Standard Plan – 8.5” x 11” PDF Download SKU: SN07206PL
Plans will be emailed to you, please allow approximately 1 hour for processing. Phone orders cannot be accepted.

Add to Wish List Add to Compare
$12.95
Woodsmith Drill Press Belt Sander Standard Plan – 8.5” x 11” Print (Shipped to You) Woodsmith Drill Press Belt Sander Standard Plan – 8.5” x 11” Print (Shipped to You) SKU: SN07206PLPR

Add to Wish List Add to Compare
$21.95

No space for a full-size edge sander? No Problem! This shop-built accessory transforms your ordinary drill press into a belt sander with all the features of a full-size machine.

Step-by-step instructions, exploded views, materials list, and more—these plans have everything you need to build your own Drill Press Belt Sander.

What you get (Downloadable PDFs):

Standard Plan:

  • 8.5” x 11” PDF of 9 printable (digital) pages of step-by-step instructions
  • More than 25 full-color photos illustration and exploded views
  • Cutting diagram materials list retail sources for hardware



What you get (Printed & Shipped):

Standard Plan:

  • 9 pages of step-by-step instructions
  • More than 25 full-color photos illustration and exploded views
  • Cutting diagram materials list retail sources for hardware
  • 8.5” x 11” print shipped to you
More Information
Country of Manufacture United States
