Woodsmith Dining Table Plan
On most extension tables, the table top is cut in half and each half is attached to some sort of runners. To extend the table, you pull the halves apart and the leaves drop in — on top of the runners. With this table both leaves are attached to the runners. When you want to extend the table, lift up one end of the top and pull out a leaf. When the leaf is fully extended, the top drops down and rests on the runners. Since the leaves fit under the table top when stored, they are slightly narrower than the top. Another interesting feature is the legs. They’re mounted with corner blocks and hanger bolts so they stand at a 45° angle to the aprons. This makes them removable, and they can also be tightened with a wrench if they loosen.
We offer the Woodsmith Dining Table plan as a downloadable PDF or a printed format that we ship to you.

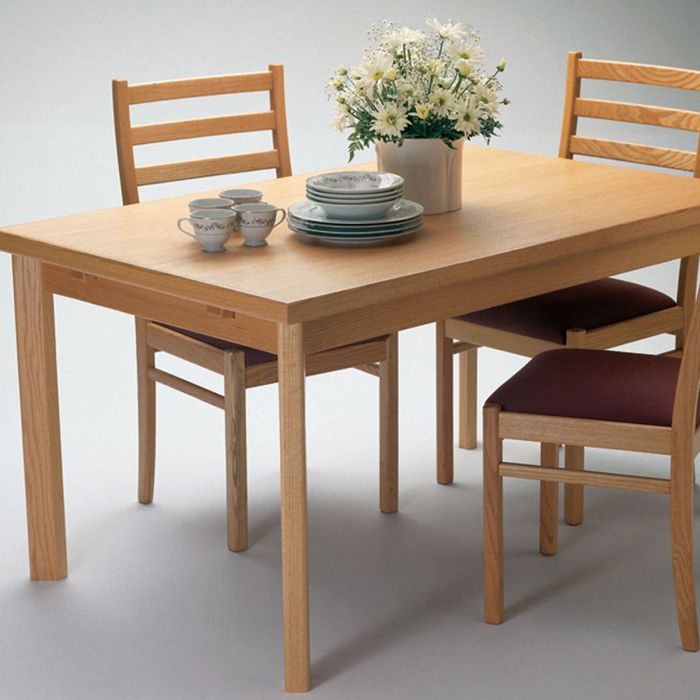

Clean and understated, this full-size oak dining table looks simple at first glance. But what you don’t see are the special pull-out extension leaves hidden underneath the table top.
Step-by-step instructions, exploded views, materials list, and more—these plans include everything needed to build your own extension Dining Table.
What you get (Downloadable PDFs):
Standard Plan:
- 8.5” x 11” PDF of 9 printable (digital) pages of step-by-step instructions
- More than 50 full-color photos and illustrations
- Shop-tested tips guarantee your success
- Materials list and cutting diagram
- Retail sources for hardware and supplies
What you get (Printed & Shipped):
Standard Plan:
- 9 pages of step-by-step instructions
- More than 50 full-color photos and illustrations
- Shop-tested tips guarantee your success
- Materials list and cutting diagram
- Retail sources for hardware and supplies
- 8.5” x 11” print shipped to you
| Country of Manufacture | United States |
|---|
