Woodsmith Chess Board Plan

SKU
WOODSMITH-CHESS-BOARD-GROUP

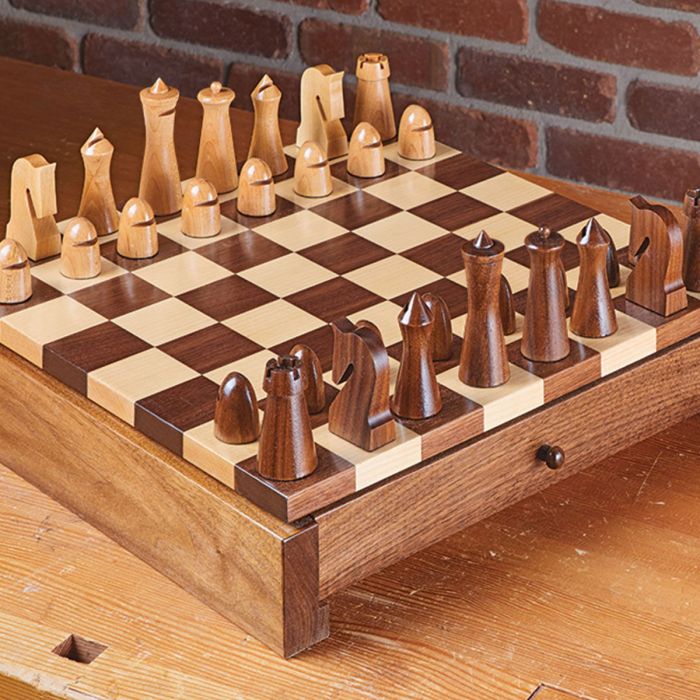

This elegant chess set features a walnut and maple playing surface that appears to float above the base. A soft, flocked drawer allows you to safely store the chess pieces when not in use. While the playing surface is beautiful, the real show-stopper, in my opinion, is the set of pieces. While the knights are made at the band saw, most of the other pieces require a little bit of time at the lathe. But don’t worry. You don’t need to be a turning wizard to conjure up these pieces. Some basic turning skills and a few simple tools will help you create the shapes needed for this set. The biggest challenge, perhaps, is the helmet-shaped pawn. However, turning the blank, removing some waste at the band saw, and gluing it back together creates the oblong, helmet shape. But put the turning out of your mind for now. The first thing to knock out is the chess board, so that’s your opening move.

We offer the Woodsmith Chess Board plan as a downloadable PDF or a printed format that we ship to you.

Grouped product items
Product Image Product Name Price
Woodsmith Chess Board Standard Plan – 8.5” x 11” PDF Download Woodsmith Chess Board Standard Plan – 8.5” x 11” PDF Download SKU: WS25546PL
Plans will be emailed to you, please allow approximately 1 hour for processing. Phone orders cannot be accepted.

Add to Wish List Add to Compare
$9.95
Woodsmith Chess Board Standard Plan – 8.5” x 11” Print (Shipped to You) Woodsmith Chess Board Standard Plan – 8.5” x 11” Print (Shipped to You) SKU: WS25546PLPR

Add to Wish List Add to Compare
$19.55

Pull up a seat, put on your thinking cap, and start the timer. This elegant chess set is the perfect way to hone your mind, and your woodworking skills.

Step-by-step instructions, exploded views, materials list, and more—these plans have everything you need to build your own Chess Board.

What you get (Downloadable PDFs):

Standard Plan:

  • 8.5” x 11” PDF of 7 printable (digital) pages of step-by-step instructions
  • 41 full-color photos illustrations and exploded views
  • Materials List and Project Supplies Sources


What you get (Printed & Shipped):

Standard Plan:

  • 7 pages of step-by-step instructions
  • 41 full-color photos illustrations and exploded views
  • Materials List and Project Supplies Sources
  • 8.5” x 11” print shipped to you
