Woodsmith Box Joint Jig Plan

SKU
WOODSMITH-BOX-JOINT-JIG-GROUP

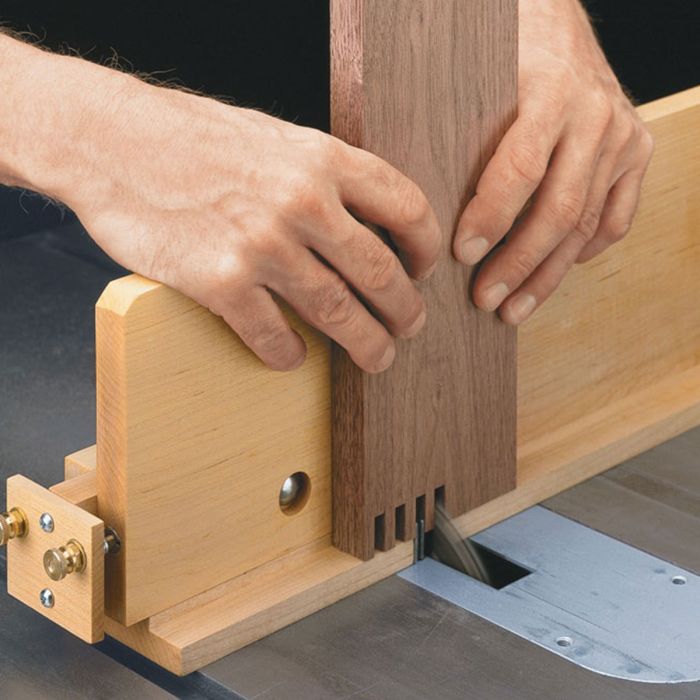

The most impressive thing about this box joint jig isn’t the tight-fitting joints you can make with it. After all, that’s what you expect from a precision-made jig. What’s really unique is how quickly and easily it can be adjusted. Most box joint jigs require an almost endless amount of tweaking. This jig, on the other hand, can be set up in a matter of minutes. The secret is a built-in system that allows you to adjust both the size and spacing of the pins and slots that make up a box joint in extremely fine increments. By simply turning a knob, you can set the jig to cut slots that range in size from a width of 1/4" to 13/16". A second knob changes the spacing of the pins and slots. This tightens (or loosens) the joint, which allows you to sneak up on a perfect fit. The result is perfect-fitting box joints every time.

We offer the Woodsmith Box Joint Jig plan as a downloadable PDF or a printed format that we ship to you.

Grouped product items
Product Image Product Name Price
Woodsmith Box Joint Jig Standard Plan – 8.5” x 11” PDF Download Woodsmith Box Joint Jig Standard Plan – 8.5” x 11” PDF Download SKU: SN00806PL
Plans will be emailed to you, please allow approximately 1 hour for processing. Phone orders cannot be accepted.

Add to Wish List Add to Compare
$12.95
Woodsmith Box Joint Jig Standard Plan – 8.5” x 11” Print (Shipped to You) Woodsmith Box Joint Jig Standard Plan – 8.5” x 11” Print (Shipped to You) SKU: SN00806PLPR

Add to Wish List Add to Compare
$21.95

Dial in perfect-fitting box joints on your table saw or router table. This jig’s micro-adjustment system and locking feature make it easy.

Step-by-step instructions, exploded views, materials list, and more—these plans have everything you need to build your own handy Box Joint Jig.

What you get (Downloadable PDFs):

Standard Plan:

  • 8.5” x 11” PDF of 9 printable (digital) pages of step-by-step instructions
  • Over 30 full-color photos and illustrations
  • Full instructions on making and using the jig
  • Retail sources for hardware and supplies
  • Shop-tested guarantee from the editors of Woodsmith magazine

What you get (Printed & Shipped):

Standard Plan:

  • 9 pages of step-by-step instructions
  • Over 30 full-color photos and illustrations
  • Full instructions on making and using the jig
  • Retail sources for hardware and supplies
  • Shop-tested guarantee from the editors of Woodsmith magazine
  • 8.5” x 11” print shipped to you
