Ultra-Shear Square Carbide Insert Tools

SKU
ULTRA-SHEAR-SQUARE-INSERT-GROUP

Reach for an Ultra-Shear Square Tool anytime you’re shaping an outside curve. That would include the outside of a bowl, the cup of a goblet, or beads in spindle work. It’s also your “go-to” for roughing stock down from square to round. There are three sizes available.  The Full and Mid-Size use the same inserts and the Pen Size uses smaller inserts. If you’re turning bowls and furniture components, the Full-Size is your best choice. The Mid-Size is a great choice if you turn pizza cutters, duck calls, shaving brushes and other palm-sized projects. The Pen Size tools are the right choice for pens, lace bobbins, finials and other fine, delicate work.

Grouped product items
Product Image Product Name Qty
Ultra-Shear - Full Size Square SKU: FSS
Supplied Standard with Square Insert 20121. Also compatible with Radiused Inserts 20122 and 20123. Overall length 24″.

Add to Wish List
$139.99
Ultra-Shear - Mid Size Square SKU: MSS
Supplied Standard with Square Insert 20121. Also compatible with Radiused Inserts 21022 and 21023. Overall length 15.25″.

Add to Wish List
Special Price $79.99 Regular Price $99.99
Ultra-Shear - Pen Size Square SKU: PSS
This replaceable tip carbide turning tool is supplied standard with a .44" full square insert #20125. Also compatible with #20126 .44" square insert with a 2" radius. Overall length 12-1/2 inches. Precision woodturning tools made in the U.S.A.

Add to Wish List
$79.99
.59 Square Insert SKU: 20123
.59″ Square with 4″ Radius. Fits Ultra-Shear FSS and MSS and many competitive tools.

Add to Wish List
$16.99
.59 Square Insert - 2" Radius Insert SKU: 20122
.59″ Square with 2″ Radius. Fits Ultra-Shear FSS and MSS and many competitive tools.

Add to Wish List
$16.99
.59 Square Insert SKU: 20121
.59″ Full Square. Fits Ultra-Shear FSS and MSS and many competitive tools.

Add to Wish List
$16.99
.44 Square Insert - 2" Radius Insert SKU: 20126
.44″ Square with 2″ Radius. Fits Ultra-Shear PSS and many competitive tools.

Add to Wish List
$14.99
.44 Square Insert SKU: 20125
.44″ Full Square. Fits Ultra-Shear PSS and many competitive tools.

Add to Wish List
$14.99

Ultra-Shear Square Carbide Insert Tools

Sadly, one of our competitors calls their square insert turning tool a “Rougher” and the name has stuck in the minds of turners everywhere. That name completely ignores the best applications for a square insert tool. Sure, of the basic insert tools the square is the best for roughing stock down to a cylinder, but there’s so much more it does well.

Any time you’re shaping an outside curve, the square tool is your best choice. Two examples of that would be beads in spindle turning and the outside of a traditional bowl form.

The square tool also is a great choice for forming a tenon to go in a chuck. It makes sure the shoulder is square. If you make the tenon just a bit wider than the middle of the insert (full- and mid-size, not pen), it will usually be just the right length to mount in most woodturning chucks.

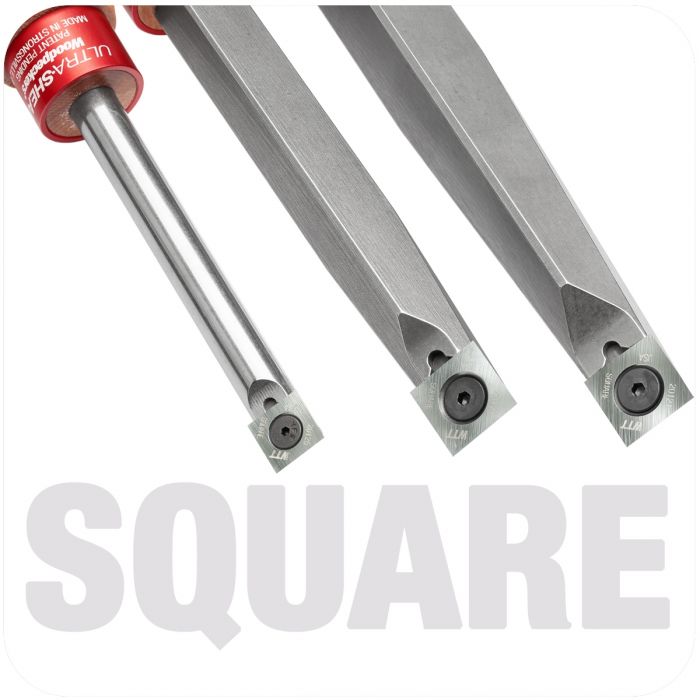

All three tools come standard with a true square insert. In addition to the true square, we have inserts with a slight radius ground into them.  The radius moves the corner away from your stock, making it a bit easier for some folks to use, particularly when smoothing outside curves. In the larger inserts, we offer true square, 4" radius and 2" radius. In the Pen Size inserts we have the true square and a 2" radius.

Carbide insert tools have been around for several years, and insert tools in general have been around since at least the mid-1980s. So, what makes Ultra-Shear different from all the rest? The three key differences are:

  • the grade and grind of the inserts.
  • the design of the tool shaft.
  • the material and treatment used in making the shaft.

It All Starts at the Cutting Edge. Ultra-Shear’s development team started this project by interviewing dozens of carbide manufacturers, seeking out a partner that recognized the unique requirements of woodturning. For advanced performance at the lathe, you need a truly keen edge. That requires a carbide that doesn’t just last, but also is fine-grained enough not to crumble when formed to a really sharp angle. The result of months of testing and trials is a unique nano-grain carbide matrix, polished to a mirror-finish on the cutting surface and precision ground on the bevel. They are the sharpest, longest lasting inserts on the market.

Go Beyond Just Shaping your Project. Carbide insert turning tools are typically used with the tool on the centerline of the lathe, held horizontal to the ground. Ultra-Shear tools use this approach for roughing and shaping cuts, but there’s a clever “twist” to these tools. After initial shaping, roll the tool right or left and you will feel it land on another bearing plane, 45° from horizontal. With the tool at this angle, the wood fibers slice cleanly, leaving a surface that needs little or no sanding.  It’s called “shear-scraping” ... an advanced technique that usually involves skillfully balancing a tool on a round surface or a sharp corner. Ultra-Shear’s patented shaft geometry makes shear scraping a simple approach even beginners can use, instead of something that takes years to master.

High Tech Steel; Higher Tech Manufacturing. A truly sharp cutting-edge needs rock solid support. Ultra-Shear uses the same ChroMoly alloy steel found in NASCAR roll cages and crankshafts. The 5-sided shape of the shaft is machined on state-of-the-art CNC milling centers. After machining, they go through a two-step hardening process creating an ultra-smooth surface-finish which glides easily across your tool rest and resists corrosion.

The full-size tools have an 8" tool length (beyond handle) with a 15-3/4" handle, for a total length of 23-3/4".  The mid-size tools have a 4-1/2" tool length with an 11" handle for a total length of 15-1/2". The pen tools have a 3-1/4" tool length with a 9" handle for a total length of 12-1/4".

Ultra-Shear Woodturning Tools are precisely machined and carefully inspected by Woodpeckers in our Strongsville, Ohio, factory, just south of Cleveland.



More Information
Country of Manufacture United States
