Plywood Sized Router Bits

SKU
ULTRA-SHEAR-PLYWOOD-BITS-GROUP


Domestic plywood rarely matches
its "nominal dimension". On the other hand, Baltic Birch is generally spot on its metric dimension…but where in the States do you find metric-sized router bits? Ultra-Shear Plywood Bits match up to the actual sizes of both domestic and European plywood for perfect fitting dadoes and grooves.

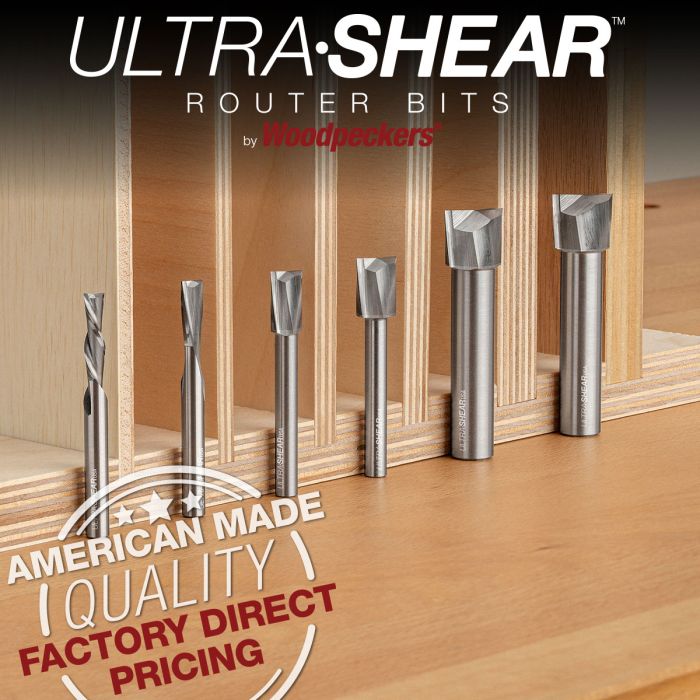

Our 7/32", 15/32" and 23/32" router bits match the true dimension of most 1/4", 1/2" and 3/4" nominal domestic plywood.  Our 6mm, 9mm and 18mm router bits match Baltic Birch plywood perfectly. And as a bonus, the 15/32" bit matches 12mm Baltic Birch.

All 6 bits have down-cut spiral geometry, which slices into the face of your material for a clean cut in even the thinnest face veneers. The two smallest bits are solid carbide. The 4 larger ones have a carbide head brazed to a rugged steel shank. You can order each size individually, or save some money with the complete set. Your plywood cabinetry projects will fit better and come together faster than ever before.

Choose $50 or more Mix and Match Ultra-Shear, get FREE SHIPPING!
(Offer applies to Ultra-Shear Router Bits only - shipped to US).

Grouped product items
Product Image Product Name Price
Ultra-Shear 2-Flute Carbide Head Router Bit, Down Cut, 1/2" Shank, 23/32" Dia., 9/16" length of cut, 2-7/8" Overall Length Ultra-Shear 2-Flute Carbide Head Router Bit, Down Cut, 1/2" Shank, 23/32" Dia., 9/16" length of cut, 2-7/8" Overall Length SKU: US5719D

free shipping info

Undersized Plywood Router Bit for 23/32" plywood.

Add to Wish List Add to Compare
Special Price $39.99 Regular Price $43.67
Ultra-Shear 2-Flute Carbide Head Router Bit, Down Cut, 1/2" Shank, 18mm Dia., 9/16" length of cut, 2-7/8" Overall Length Ultra-Shear 2-Flute Carbide Head Router Bit, Down Cut, 1/2" Shank, 18mm Dia., 9/16" length of cut, 2-7/8" Overall Length SKU: US518MD

free shipping info

Undersized Plywood Router Bit for 18mm plywood.

Add to Wish List Add to Compare
Special Price $39.99 Regular Price $43.67
Ultra-Shear 2-Flute Carbide Head Router Bit, Down Cut, 1/4" Shank, 15/32" Dia., 9/16" length of cut, 2-1/2" Overall Length Ultra-Shear 2-Flute Carbide Head Router Bit, Down Cut, 1/4" Shank, 15/32" Dia., 9/16" length of cut, 2-1/2" Overall Length SKU: US2469D

free shipping info

Undersized Plywood Router Bit for 15/32" plywood.

Add to Wish List Add to Compare
Special Price $29.99 Regular Price $31.77
Ultra-Shear 2-Flute Carbide Head Router Bit, Down Cut, 1/4" Shank, 9mm Dia., 9/16" length of cut, 2-1/2" Overall Length Ultra-Shear 2-Flute Carbide Head Router Bit, Down Cut, 1/4" Shank, 9mm Dia., 9/16" length of cut, 2-1/2" Overall Length SKU: US29MD

free shipping info

Undersized Plywood Router Bit for 9mm or sanded 3/8" plywood.

Add to Wish List Add to Compare
Special Price $29.99 Regular Price $31.77
Ultra-Shear 2-Flute Solid Carbide Router Bit, Down Cut, 1/4" Shank, 6mm Dia., 5/8" length of cut, 2-1/2" Overall Length Ultra-Shear 2-Flute Solid Carbide Router Bit, Down Cut, 1/4" Shank, 6mm Dia., 5/8" length of cut, 2-1/2" Overall Length SKU: US26MD

free shipping info

Undersized Plywood Router Bit for 6mm or sanded 1/4" plywood.

Add to Wish List Add to Compare
Special Price $20.99 Regular Price $21.19
Ultra-Shear 2-Flute Solid Carbide Spiral Router Bit, Down Cut,  1/4" Shank, 7/32" Dia., 3/4" length of cut, 2-1/2" Overall Length Ultra-Shear 2-Flute Solid Carbide Spiral Router Bit, Down Cut, 1/4" Shank, 7/32" Dia., 3/4" length of cut, 2-1/2" Overall Length SKU: US27218D

free shipping info

Undersized Plywood Router Bit for 7/32" plywood

Add to Wish List Add to Compare
Special Price $21.99 Regular Price $22.53
Ultra-Shear 6-Pc Carbide Router Bit Set for Plywood Ultra-Shear 6-Pc Carbide Router Bit Set for Plywood SKU: USPLYSET-6PC

free shipping info

Includes 7/32", 6mm, 9mm, 15/32", 18mm and 23/32".

Add to Wish List Add to Compare
Special Price $179.99 Regular Price $194.60

American Made Quality at Factory Direct Pricing

Like all Woodpeckers products, The Plywood-Sized Router Bits are made right here in our Strongsville, Ohio, facility just south of Cleveland. Don’t settle for inferior quality imported bits to save money. Woodpeckers uses state-of-the-art CNC grinding equipment, the highest quality solid carbide blanks and ultra-fine grinding wheels to produce American-made router bits at extremely competitive prices. We’re confident you won’t find an American-made bit of the same design for less.

More Information
Country of Manufacture United States
Flute 2 Flute
