Ultra-Shear - Pen Turning Tools


(Scroll to bottom for video)

American-Made Tools Engineered For Sharpening-Free Turning of Pens, Finials and Other Delicate Projects

Love Turning but Hate Sharpening? If you love pen turning, but don’t have the time or expensive equipment necessary to constantly sharpen traditional tools, you need Woodpeckers new Ultra-Shear carbide insert tools. These tools eliminate the drudgery of sharpening by using nano-grain carbide inserts mounted to induction-hardened alloy steel shafts. When the edge finally gets dull (more on that later), simply rotate the cutter to a new edge. When all edges are dull, put on a new insert and get right back to your project.

So, What’s New? Carbide insert tools have been around for several years, and insert tools in general have been around since at least the mid-1980s. So, what makes Ultra-Shear different from all the rest? The list is long, but the three most important differences are the grade and grind of the inserts, the design of the tool shaft and the material and treatment used in making the shaft.

It All Starts at the Cutting Edge. Ultra-Shear’s development team started this project by interviewing dozens of carbide manufacturers, seeking out a partner that recognized the unique requirements of woodturning. Any carbide blend can create a long-lasting edge, but for advanced performance at the lathe, you need a truly keen edge. That requires a carbide that doesn’t just last, but also is fine-grained enough not to crumble when formed to a very sharp angle. The result of months of testing and trials is a unique nano-grain carbide matrix, polished to a mirror-finish on the cutting surface and precision ground on the bevel. They are the sharpest, longest lasting inserts on the market.

Cut Cleaner. Sand Less. Today’s pen turner works in a world full of exotic materials; acrylics, polymer clays, stabilized wood, and even mixtures of all the above. Most of these materials don’t cut cleanly with the normal approach for carbide tipped tools (tool level on the centerline and parallel to the stock). Shear scraping is a technique where the tool is presented at an angle to the workpiece, improving the surface finish dramatically. In solid wood, 45 usually delivers the optimum finish, but acrylics, polymers and blends are different. Ultra-Shear pen tools feature round sides allowing you to locate the optimum shear angle for whatever material you’re turning. There’s a large flat surface milled on the bottom for solid support of your initial roughing and shaping cuts.

High Tech Steel; Higher Tech Manufacturing. A truly sharp cutting edge needs rock solid support to give you the best results. Ultra-Shear tools feature the same rigid ChroMoly alloy steel used in NASCAR roll cages and crankshafts. CNC machines create the intricate insert seats, then the shafts go through a two-step hardening process which creates an ultra-smooth surface finish that glides easily across your tool rest and resists corrosion.

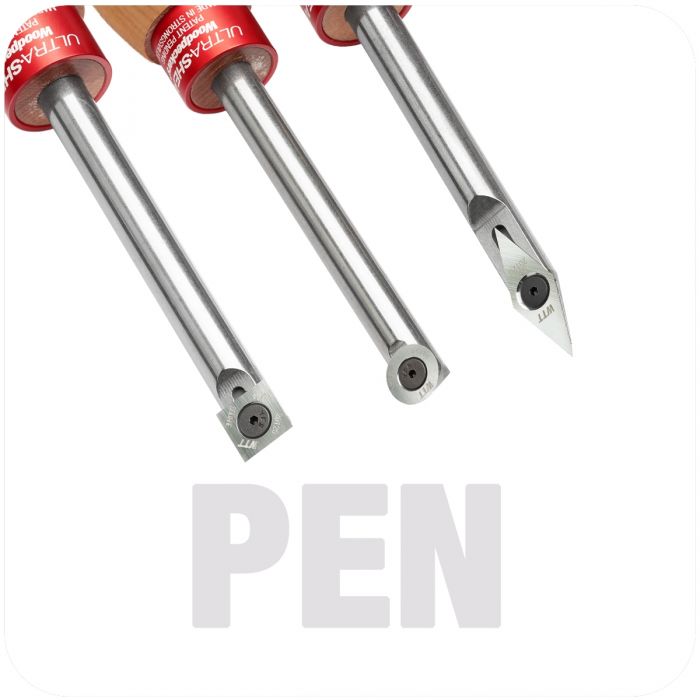

Not just for pens. The three Ultra-Shear pen tools include square, round and diamond-point insert profiles. The square tool is the workhorse for most pen projects. The diamond-point detail tool inscribes fine detail lines for accents. The round tool creates inside curves (coves) on specialty designs. Their small size and razor-sharp inserts make these tools ideal for other detailed work in addition to pen turning, such as finials and miniatures. Projects many think impossible with carbide tools can now be tackled with Ultra-Shear.

Sold individually or at a savings when you order them as a set. The Ultra-Shear tools are machined in our own shop in Strongsville, Ohio.

Credit Card Policy. Please note if you're paying by credit card, you will not be charged until your order is ready to ship. However Paypal and other payment services may charge you at the time the order is placed.



Click here to check out our
Ultra-Shear Full and Mid size turning tools.

Click here to check out our razor sharp, Ultra-Shear carbide inserts.

Click here to check out our Center Finders.


Ultra-Shear - Pen Size Set of Three
$239.97 $219.99 Sale!
PSK

Set includes (1) each PSS, PSR, PSD Pen Size Turning Tools. Precision Woodturning Tools made in the U.S.A.

Quantity


Ultra-Shear - Pen Size Square
$79.99
PSS

This replaceable tip carbide turning tool is supplied standard with a .44" full square insert #20125. Also compatible with #20126 .44" square insert with a 2" radius. Overall length 12-1/2 inches. Precision woodturning tools made in the U.S.A.

Quantity


Ultra-Shear - Pen Size Detail
$79.99
PSD

This replaceable tip carbide turning tool is supplied standard with full sharp detail insert #20129. Also compatible with radiused detail insert #21028. Overall length 12-1/2 inches. Precision woodturning tools made in the U.S.A.

Quantity


Ultra-Shear - Pen Size Round
$79.99
PSR

This replaceable tip carbide turning tool is supplied standard with a .46" round insert #20127. Overall length 12-1/2 inches. Precision woodturning tools made in the U.S.A.

Quantity


Universal Detail Insert - Radius Tip
$18.99
20128
Universal Detail Radiused Point. Fits Ultra-Shear FSD, MSD, PSD and many competitive tools. Turning without sharpening!
Quantity


Universal Detail Insert - Sharp Tip
$18.99
20129

Universal Detail Full Sharp Point. Fits Ultra-Shear FSD, MSD, PSD. WILL NOT FIT most other brands. Turning without sharpening!

Quantity


.46 Round Insert
$16.99
20127

.46″ Round. Fits Ultra-Shear PSR and many competitive woodturning tools. Turning without sharpening!

Quantity


.44 Square Insert
$14.99
20125

.44″ Full Square. Fits Ultra-Shear PSS and many competitive woodturning tools. Turning without sharpening!

Quantity


.44 Square - 2" Radius Insert
$14.99
20126

.44″ Square with 2″ Radius. Fits Ultra-Shear PSS and many competitive woodturning tools. Turning without sharpening!
