Carbide Head Compression Pattern and Flush Trim Router Bit, 2+2 Flute, 1/4" Shank

SKU
ULTRA-SHEAR-CARBIDE-HEAD-COMBO-PATTERN-FLUSH-TRIM-1/4-SHANK-BIT

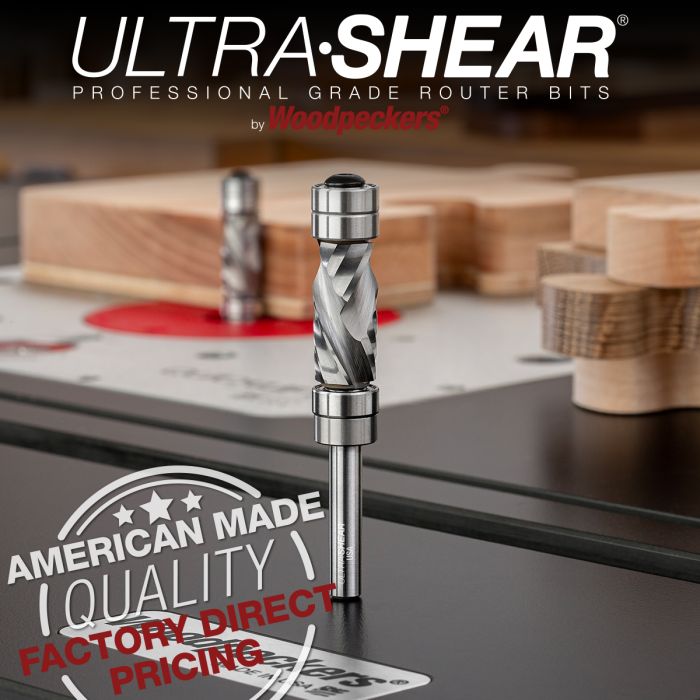

Ultra-Shear's 1/4" Shank Carbide-Head Compression Pattern and Flush Trim Bit lets you tackle pattern routing projects with smaller routers. With bearings both above and below the cutter, you can cut with your pattern either above or below the workpiece, ensuring your safety and delivering clean cuts. Couple the double-bearing design with the double-shearing action of compression grinding geometry and you have a bit that speeds up your pattern routing, minimizes sanding, avoids tear-out and handles plywood as well as solid wood.

FREE SHIPPING on Ultra-Shear Router Bits & Saw Blades.
*US 48 States only. Ultra-Shear brand only. Cannot be combined with other products.



Grouped product items
Product Image Product Name Price
Carbide Head Pattern Flush Trim Compression, 2-Flute, 1/4" Shank, 1/2" Diamter, 1" Cut Length Carbide Head Pattern Flush Trim Compression, 2-Flute, 1/4" Shank, 1/2" Diamter, 1" Cut Length SKU: US225010PFC

Sold Out! Reserve Yours Today! Expected to Ship February 26, 2025.

Add to Wish List Add to Compare
Special Price $59.99 Regular Price $81.18

American Made Quality at Factory Direct Pricing

Pattern routing has three basic rules to ensure your safety and achieve the best surface finish. 1) Feed into the rotation of the router bit. In general, on a router table that means feeding from your right to your left. 2) Cut downhill as much as possible on any slope or curve along the edge grain of the wood. 3) Approach corners so you transition from edge grain to end grain rather than end grain to edge grain.  One sure way to guarantee you can follow these rules is to be prepared to work with your pattern both above and below your workpiece. On a simple rounded rectangle as shown in the photos, two opposing corners are cut with the pattern on top.

The other two opposing corners are cut with the pattern on the bottom. Just flip your project over, raise the bit until the motor-side bearing engages the pattern and get right back to work. You'll get flawless cuts on all four quadrants with minimal risk of tear-out or catches.

While this bit looks similar to a solid carbide bit, it uses a carbide tube brazed to a resilient steel shank to absorb shock better than solid carbide. This hybrid approach brings the cost down, as well as providing better shock absorption…win, win. The 1/2" diameter gets you into tight radius corners where most other compression pattern bits won't fit.

Don’t settle for inferior quality imported bits to save money. Ultra-Shear uses state-of-the-art CNC grinding equipment, the highest quality carbide, ultra-fine grinding wheels and skilled Northeast Ohio machinists to produce American-made router bits at extremely competitive prices. The days of paying extra for middle-man markups are over. Buy direct from the manufacturer and pocket the savings. We’re confident you won’t find an American-made bit of the same design for less.



More Information
Country of Manufacture United States
Shank 1/4"
