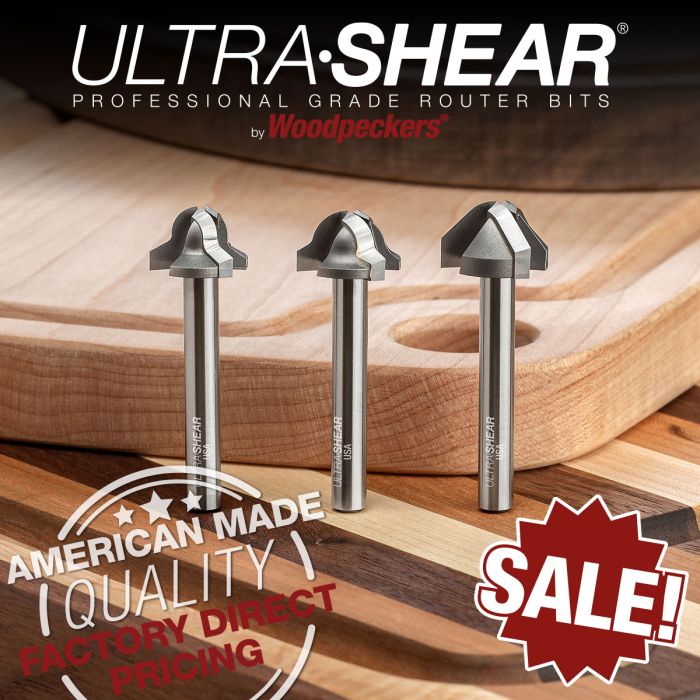

3-Flute, 1/4" Shank, Carbide Tipped, Round Nose Juice Groove Router Bits
Our New Ultra-Shear Carbide-Tipped 3-Flute Juice Groove Bits take your cutting board projects to a new level of professionalism while saving you time and effort. The 3-flute design delivers your choice of more cuts per inch (at the same feed rate) or faster feed rates with no loss of finish quality. Each of the three patterns has a chamfer that leads into the cove. This simplifies sanding and improves “juice” flow by eliminating the sharp edge created by common ball-nose bits. With three different styles to choose from, one is sure to fit your cutting board design.
American Made Quality at Factory Direct Pricing
All three patterns allow you some flexibility in the final appearance of your groove. You can make them shallow enough that the chamfer just breaks the edge or increase the depth of cut and create a wider chamfer that adds another element. The first two bits have a full cove shape in 3/8" and 1/2" diameters and 30° lead-in chamfers. The third design is a 90° vee-groove with a 1/4" radius at the tip.
While the internet is full of different jigging options for cutting juice grooves, by far the easiest and most adaptable is a simple internal template and a template guide bushing in your router base. We've made a special template guide bushing that's 1" outside diameter and 7/32” long. To make a template, simply shape a piece of 1/4" material 1" narrower than where you want the center of your groove and stick it to your board with double-faced tape. Keep the template guide bushing against the edge of the template and move counter-clockwise around the template. It's that easy. Our special template guide bushing fits any router base that accepts Porter-Cable style guide bushings. If you want to use a cordless palm router, our StabilMax Trim Router Base accepts standard P-C guide bushings and gives you a more balanced footing than the OEM base plate.
The Carbide-Tipped 3-Flute Juice Groove Bits also work flawlessly in CNCs of any size as well as the Shaper Origin. Program any pattern you want and cut away.
Don’t settle for inferior quality imported bits to save money. Ultra-Shear uses state-of-the-art CNC grinding equipment, the highest quality micro-grain carbide, ultra-fine grinding wheels and skilled Northeast Ohio machinists to produce American-made router bits at extremely competitive prices. The days of paying extra for middleman markups are over. Buy direct from the manufacturer and pocket the savings. The Carbide-Tipped 3-Flute Juice Groove Bits and the template guide bushing are all available individually, or you can get the complete set which includes all 3 bits and the template guide bushing.
| Country of Manufacture | United States |
|---|
WARNING: Wood Dust created by Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection.
