OneTIME Tool - THE ULTIMATE DOWELING JIG 2.0 - 2021 - Retired Monday, November 29, 2021

SKU
OTT-ULTIMATE-DOWELING-JIG-2.0-2021

Dowels add both mechanical strength and additional glue surface to joints. The tricky part is putting the dowel holes in the correct place on the mating pieces. Most of the doweling jigs on the market are “one trick ponies” at best, allowing you to create one specific type of joint. Woodpeckers latest OneTIME Tool, the Ultimate Doweling Jig, takes the doweling jig to another level with variable spacing, incremental fence positioning, stops with extensions, a second fence for mid-field dowel locations, and the flexibility to use up to 5 different dowel sizes.

Grouped product items
Product Image Product Name
Ultimate Doweling Jig 2.0 - Includes 3/8" and 1/4" Drill Guides and Pins in a Systainer Case Ultimate Doweling Jig 2.0 - Includes 3/8" and 1/4" Drill Guides and Pins in a Systainer Case SKU: UDJ-21SYS
Out of stock
 Ultimate Doweling Jig 2.0 - Includes 3/8" and 1/4" Drill Guides  and Pins in  a Woodpeckers Case Ultimate Doweling Jig 2.0 - Includes 3/8" and 1/4" Drill Guides and Pins in a Woodpeckers Case SKU: UDJ-21WP
Out of stock
Ultimate Doweling Jig 2.0 - 5mm" Drill Guides and Pin Only Ultimate Doweling Jig 2.0 - 5mm" Drill Guides and Pin Only SKU: UDJ-21DG5MM
Out of stock
Ultimate Doweling Jig 2.0 - 1/2" Drill Guides and Pin Only Ultimate Doweling Jig 2.0 - 1/2" Drill Guides and Pin Only SKU: UDJ-21DG500
Out of stock
Ultimate Doweling Jig 2.0 - 5/16" Drill Guides and Pin Only Ultimate Doweling Jig 2.0 - 5/16" Drill Guides and Pin Only SKU: UDJ-21DG3125
Out of stock

Ultimate Doweling Jig 2.0

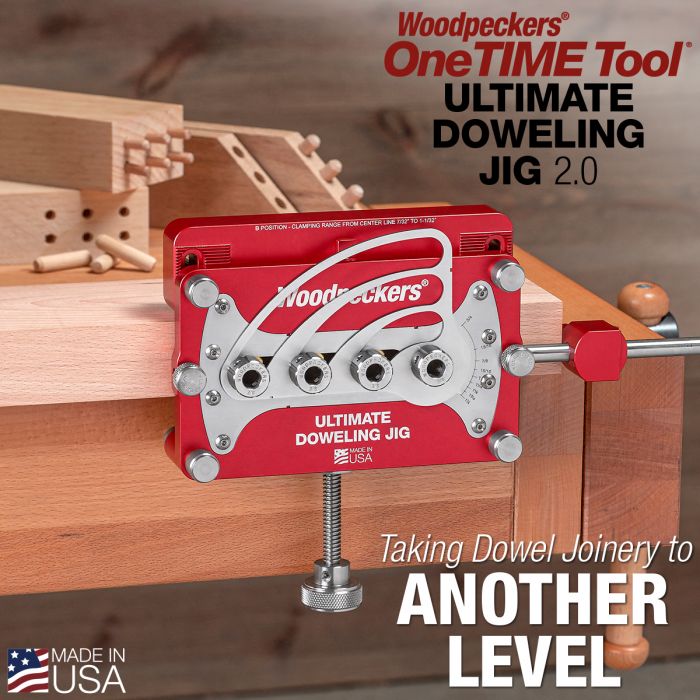

The flashiest feature of the Ultimate Doweling Jig is the variable spacing. Loosen all four drill bushings and adjust the spacing with infinite control from 3/4" center-to-center to 1-1/4" center-to-center. The stainless steel cam plate synchronizes the bushings for perfect spacing at any setting. That’s a cool feature, but flip the jig over and you’ll find more clever features that work in concert with the variable spacing, starting with the incrementally adjustable fence.

The rock-solid fence adjusts in 1/32" increments from just 7/32" from the centerline up to 1-3/8" for double-row joints on 2" stock. Precisely-milled teeth engage between the fence and the jig base to keep alignment perfect. An easy-reading laser-engraved scale shows you the exact spacing between the drilling centerline and the fence.

To locate the dowels relative to the edge or end of your stock, insert the stainless steel stop rod in the end of the jig and set the stop to the laser-engraved scale. The “0” point of the scale is the center of the first bushing location. You can calculate everything based off that point, even offsets for table aprons and decorative shoulders.  With four one-foot-long threaded sections, you can position the stop within a fraction of an inch from the first dowel or up to 4' away.

Sometimes you need a dowel joint out in the middle of a cabinet panel or furniture component. With most jigs on the market, you’re out of luck, but the Ultimate Doweling Jig handles mid-field drilling with ease and accuracy. Take off the incremental fence and the clamping bar and you have a flat-faced drilling jig. Even better, add on the extension fence and the stop and you have two-axis positioning to put a set of holes right where you want them time and time again.

Even shelf pin holes are no problem for the Ultimate Doweling Jig. You can guide along an edge and create an equally spaced series of holes using the supplied index pin to keep the spacing consistent. The index pins also come in handy when you have a joint you want make with more than 4 dowels.

So, let’s look at this cabinet and its construction. Top flush with sides; check. Bottom flush to the top of the face frame; check. Fixed middle shelf; check. Adjustable middle shelf; check. Face frame joints at ends and middle; check. Face frame blind-mounted to cabinet; check and done. The Ultimate Doweling Jig handled it all, and we just scratched the surface of its capacities.

The Ultimate Doweling Jig comes with the jig, extension rods, extension fence, end stop, both 1/4" and 3/8" drill bushings and indexing pins. 5mm, 1/2" and 5/16" drill bushing and index pin sets are available separately. You have your choice of a molded Woodpeckers storage case or a stacking Systainer.

Like all our OneTIME Tools, the Ultimate Doweling Jig is only made to order, precisely machined and carefully inspected in our Strongsville, Ohio manufacturing facility (just south of Cleveland). The deadline to order yours is Monday, November 29, 2021. Once orders are filled, it will be retired from our product line. Delivery is scheduled for April, 2022.

Credit Card Policy: Please note, if you're paying by credit card, you will not be charged until your order is ready to ship. However, Paypal and other payment services may charge you at the time the order is placed.

Let Us Know
If there's enough demand, we may re-run some of these tools. If you're interested, please click here to leave us your comments. Thanks.

More Information
Country of Manufacture United States
