OneTIME Tool - Corner Jig - 2021 - Retired Monday, May 24, 2021

Custom Message

Tired of searching for the right-sized jelly jar or coffee can to lay out corner radii? Don’t like the look of uneven, ragged corners from your jigsaw and belt sander routine? Then you’re ready for Woodpeckers latest OneTIME Tool, the Corner Jig. Just pick the radius or chamfer template you want, attach it to the base plate and you’re ready to rout a perfect corner…either hand-held or on your router table.

Grouped product items
Product Image Product Name Price
Corner Jig – Deluxe Set Corner Jig – Deluxe Set SKU: CJ-SET-DL-21
Includes the Corner Jig with (12) Radius Corners, (6) Chamfer Corners in a Woodpeckers Case.
This product has an estimated ship date October 31, 2021.

Add to Wish List
Corner Jig – Radius Set Corner Jig – Radius Set SKU: CJ-SET-RD-21
Includes the Corner Jig and (12) Radius Corners in a Woodpeckers Case.
This product has an estimated ship date October 31, 2021.

Add to Wish List
Corner Jig – Chamfer Set Corner Jig – Chamfer Set SKU: CJ-SET-CH-21
Includes the Corner Jig and (6) Chamfer Corners in a Woodpeckers Case.
This product has an estimated ship date October 31, 2021.

Add to Wish List

Corner Jig

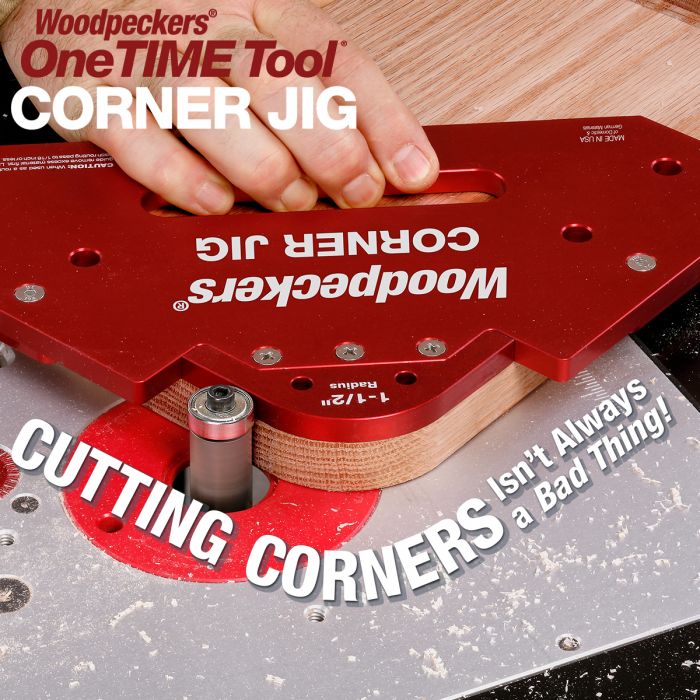

 We focused on versatility and accuracy when we designed the Corner Jig. It has a perfectly flat top when assembled, which means you can use it with a hand-held router on large surfaces like a tabletop. Just follow the template with a top-bearing flush-trim bit.  But what about smaller projects? No problem. Put a tip-bearing flush-trim bit in your router table and hand-hold your workpiece and the Corner Jig. There’s a hand grip machined into the body to make it easy to keep the jig tight on the corner of your work. Either on the router table or with a hand-held router, you’ll machine a perfect corner every time.

The interchangeable templates come in both radius and chamfer styles, with radii from 1/8" to 1-1/2" in eighth-inch increments and chamfers from 1/4" to 1-1/2" in quarter-inch increments. When you’re designing a project, the templates make it easy to visualize the results…just align them on the corner of your work until you decide which size and style work best.

Woodpeckers Corner Jig starts with a hefty base milled from cast and ground aluminum plate…the same top-quality material we use in our router lifts and precision squares. The eighteen different templates are machined to exacting tolerances. Each one aligns perfectly on the base with three stainless steel screws. Indexing blocks on the bottom of the base align the jig to the corner of your workpiece. All the aluminum components are anodized for corrosion protection and to give them our distinctive “Woodpecker Red” appearance.

We’re offering the Woodpeckers Corner Jig in three different sets, Radius, Chamfer, and Deluxe. All three sets include the Corner Jig Base and come in a protective case with a custom-cut foam liner. The Radius Set includes all 12 radius templates. The Chamfer Set includes all 6 Chamfer Templates. Need them all? Get them all in the Deluxe Set which includes all 18 templates.

When we tally the requests for retired OneTIME Tools this one is always near the top of the list. That’s why we’re bringing it back for another production run. Whether this is the first you’ve heard of it, or you’ve been anxiously waiting for it to come back, here’s your chance to add this versatile routing aid to your shop.

Like all our OneTIME Tools, the Corner Jig is only made to order, precisely machined and carefully inspected in our Strongsville, Ohio factory (just south of Cleveland). The deadline to order yours is Monday, May 24, 2021. Once orders are filled, the tool will be retired from our product line. Order yours today! Delivery is scheduled for October, 2021.

Credit Card Policy. Please note if you're paying by credit card, you will not be charged until your order is ready to ship. However, Paypal and other payment services may charge you at the time the order is placed.

Let Us Know If there's enough demand, we may re-run some of these tools. If you're interested, please click here to leave us your comments. Thanks.

More Information
Country of Manufacture United States
