OneTIME Tool - Precision Corner Jig 2016 - Retired January 9, 2017


Cut Perfect, Fast and Easy Radius or Chamfered Corners, 18 Template Sizes Available.

Our Solid Aluminum Corner Jig Delivers Perfect Shapes Every Time. In most woodworking projects, success or failure hinges on the details. That includes perfectly shaped corners on the tops for tables, cabinets and other furniture. Woodworkers most popular corner shapes are radiuses and chamfers (sometimes called “clipped corners”). These look great when perfectly cut, but even a slightly misshapen corner, as often happens when cut with a jigsaw, will spoil an otherwise great project.

Grouped product items
Product Image Product Name
Corner Jig - Deluxe Set Corner Jig - Deluxe Set SKU: CJ-SET-DL-16
Out of stock
Corner Jig - Radius Set Corner Jig - Radius Set SKU: CJ-SET-RD-16
Out of stock
Corner Jig - Chamfer Set Corner Jig - Chamfer Set SKU: CJ-SET-CH-16
Out of stock

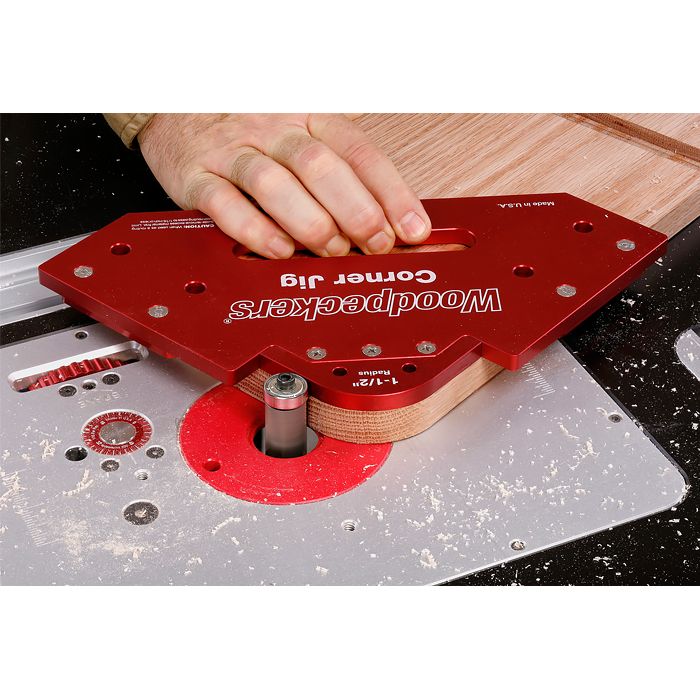

Hand Held or Router Table Use. Our Corner Jig is designed for use at either a router table or when using a hand held router. When clamped in place the jig provides a large, flat and secure surface for your router base as you move a pattern cutting bit along the template’s guiding edge. At the router table you simply hold a smaller workpiece nested in the jig and feed the work against a bearing guided bit. No tape or screws are necessary. It couldn’t be faster or easier to achieve perfect results.

How the Jig Works. Woodpeckers Corner Jig starts with a hefty baseplate made from tool plate grade aluminum. To the base, attach any one of 18 interchangeable template sizes and shapes. Three stainless steel screws precisely align and secure the radius or chamfer template to the base. The bottom of the base plate features a pair of precision-machined indexing blocks that align the template to the work. These blocks make it virtually impossible to misalign your cut. And once your perfect cut is made you can always use a decorative profile bit to add more detail all around your top edge.

Wide Selection of Radius and Chamfer Sizes. Woodpeckers Corner Jig Sets provide a wide selection of both radius and chamfer sizes so you’ll have the perfect size for your projects right at your fingertips. Our Corner Jig Radius Set includes 12 templates ranging in size from 1/8" all the way up to 1-1/2". The Chamfer Jig Set has 6 templates from 1/4" to 1-1/2". Select the Deluxe Corner Jig Set and get all 18 templates. All sets come in a protective molded plastic case with custom cut foam interiors for safe, well-organized storage.

Back by popular demand. The Corner Jig was last available as a OneTime Tool over two years ago. Since then, we’ve had many requests to bring it back. Our next run of this tool will be in early 2017. So if you missed it last time, here's another chance.

Pre-Order Now, Don’t Delay!

When They’re Gone, They’re Gone! Like all our OneTIME Tools, the Corner Jig is only made-to-order. The deadline to order yours is Monday, January 9, 2017. Once orders are filled, the tool will again be retired from our product line. Order yours today! Delivery is scheduled for May, 2017.

Like all Woodpeckers tools, the Corner Jig is manufactured in our Cleveland, Ohio shop by our highly skilled machinists operating state-of-the-art, American made CNC equipment. And we’re proud that it’s completely made in the U.S.A.

Let Us Know
If there's enough demand, we may re-run some of these tools. If you're interested, please click here to leave us your comments. Thanks.

More Information
Country of Manufacture United States
