OneTIME Tool - Clamp Support System 24 - Retired April 2, 2018

SKU
OTT-CLAMP-SUPPORT-SYSTEM-2018

Streamline Glue-Ups, Save Time and Your Sanity

Win the Race Against the Clock Every Time! Every woodworker knows glue-ups can be stressful. Glue open times are only minutes long and every board and every clamp must be positioned just so. And all too often, something you didn’t plan on pops up and slows you down stealing a few of those precious minutes. Whew!

Grouped product items
Product Image Product Name
Clamp Support System 24 - Bar - Pair Clamp Support System 24 - Bar - Pair SKU: CSS24-BARX2
Clamp Support System - 24 Inch for Bar Clamps. One pair. Made in U.S.A. Clamps not included.,
Out of stock
Clamp Support System 24 - Pipe - Pair Clamp Support System 24 - Pipe - Pair SKU: CSS24-PIPEX2
Clamp Support System - 24 Inch for Pipe Clamps. One pair. Made in U.S.A. Clamps not included.,
Out of stock
Clamp Support System 24 - Bar and Pipe Clamp Support System 24 - Bar and Pipe SKU: CSS24-PBX2
Includes (1) Bar Clamp CSS and (1) Pipe Clamp CSS. Made in U.S.A. Clamps not included.,
Out of stock
Clamp Support System 24 - Pipe Clamp Support System 24 - Pipe SKU: CSS24-PIPE
Clamp Support System - 24 Inch for Pipe Clamps. Made in U.S.A. Clamps not included.,
Out of stock
Clamp Support System 24 - Bar Clamp Support System 24 - Bar SKU: CSS24-BAR
Clamp Support System - 24 Inch for Bar Clamps. Made in U.S.A. Clamps not included.,
Out of stock

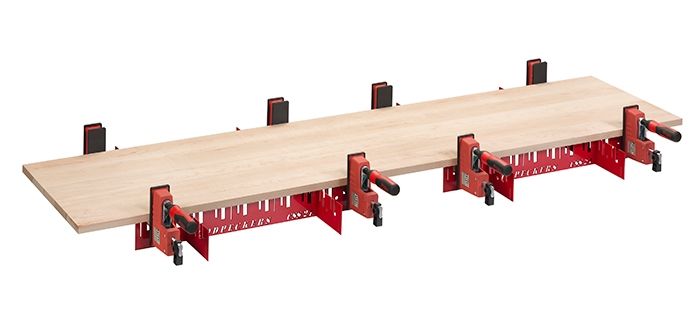

Enter. . . Woodpeckers New Clamp Support System 24. The CSS 24 is the next best thing to having an extra pair of hands at glue-up time. This simple, yet effective, clamp holding fixture buys you extra time during glue-ups by streamlining the process. The system also positions your clamps to optimize clamp pressure across panels or put clamp pressure just where you want it, as in raised panel door glue-ups. By keeping the clamp heads perpendicular to the boards’ edges, pressure radiates out evenly in both directions. This also keeps boards from sliding along wet glue lines.

Pipe Clamps, Bar Clamps, Parallel Face Clamps. The CSS 24 comes in two models to handle the style of clamps you’re using. The pipe clamp model nests 3/4" or smaller pipe clamps. The bar clamp version works with a range of clamps including bars up to 1/4" in the smaller slot and 3/8" in the wider slots. Both styles use four pieces that make up a 24" square with 10 positions for clamps on each side of the fixture.

Fast Assembly and a Variety of Sizes. The four sides of the CSS 24 are quickly assembled using notches in each bar that forms a sturdy “egg crate” joint. Notches are spaced at 4¾" intervals allowing a wide variety of fixture sizes to accommodate your glue up size. For longer panel glue-ups simply use a second, or even third, CSS 24 to handle your needs. It couldn’t be easier!

Even More Reasons to Like the CSS 24. If you’ve used pipe clamps (and who hasn’t?) you know that the clamp head must be positioned near the edge of your bench or table to allow the handle to fully turn. You’ll love the way the CSS 24 elevates the clamps so the crank handle turns without impedance.

The top edge of the fixture is slightly above the plane of the clamp pipe or bar. This feature lets the wood parts rest on this flat edge to assist in leveling the boards. It also prevents glue squeeze-out from reacting with uncoated steel that blackens wood. The fixture is made of heavy duty, 3/32" thick steel that’s 3" wide. You’ll especially appreciate the thick powder coat paint finish that dried glue barely sticks to. When it does you can easily flick it right off.

You’ll find Woodpeckers CSS 24 the best glue up buddy a woodworker can have. Put them to work in your shop and take the stress out of glue-up time.

Ordering Options. The Clamping Support System can be ordered individually in either pipe clamp or bar clamp style. You may also order both styles as a set, or more than one of each style and save money on the second unit.

When They’re Gone, They’re Gone! Like all our OneTIME Tools, the Clamp Support System 24 is only made to order in our Strongsville, Ohio machine shop. The Deadline to order yours is April 2, 2018. Once the deadline passes and orders are filled, this tool will be retired from our product line. Delivery is scheduled for June, 2018.

Pre-Order Now, Don’t Delay!

Credit Card Policy. Please note if you're paying by credit card, you will not be charged until your order is ready to ship. However Paypal and other payment services may charge you at the time the order is placed

Let Us Know
If there's enough demand, we may re-run some of these tools. If you're interested, please click here to leave us your comments. Thanks.

More Information
Country of Manufacture United States
