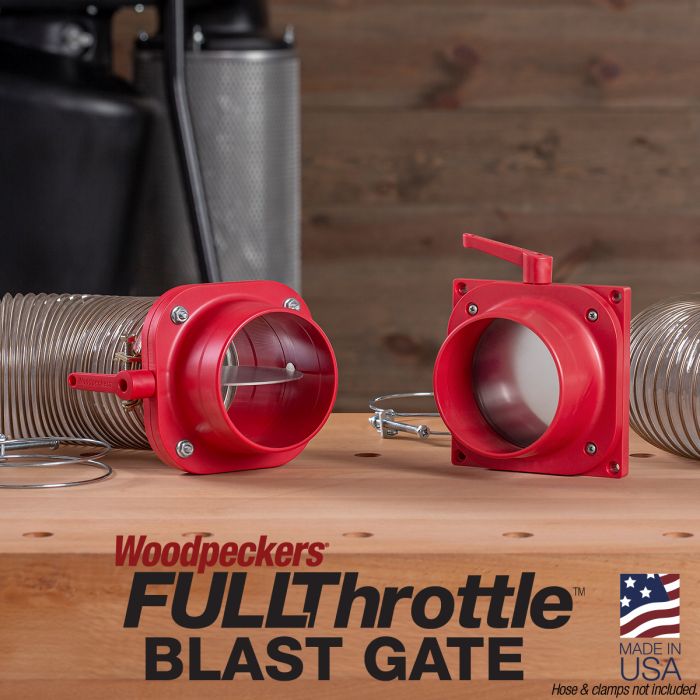

FULLThrottle™ Blast Gate
For some years woodworkers have been taking dust collection more seriously for both work environment and health reasons. Tool manufacturers have added and improved dust collection on their equipment, pleated filters are replacing open weave bags and cyclone separators are becoming common. One critical component of the dust collection system hasn’t seen much in the way of innovation…that is, until now. Introducing Woodpeckers FULLThrottle blast gates. Our blast gates offer several unique advantages over traditional sliding valves; more efficient airflow, reduced maintenance, better fit with quick-change couplers, easier installation of flexible hose, and better mounting options.
FULLThrottle™ Blast Gate
Inspired by the intake ports on top-fuel dragsters (where airflow restrictions are the difference between winning and losing), our engineers designed a high-efficiency butterfly valve. When the valve is open there’s only the knife edge of the gate obstructing airflow and when it’s closed, it is nearly 100% blocked with little risk of debris getting in the way of full closure. Look inside the typical steel or plastic sliding gate and you’ll see a large portion of the airway blocked by the part of the gate that doesn’t get out of the way. This not only restricts airflow, it also creates unwanted turbulence.
Typical blast gates have grooves for the gates to slide in. Those grooves collect chips like a magnet. Soon you have to fight the gate open and closed or stop everything and clean them out. FULLThrottle’s butterfly design eliminates the groove and the cleaning that goes with it.
Better Mounting Options
Ducts running overhead? Put your FULLThrottle blast gates with the lever facing down. Ducts on the wall? The lever can be placed on either side, the top or the bottom, whatever is convenient. Need the valve mounted directly to the machine? In addition to our in-line valve, we offer one with a flange mount. No matter which way you mount it, you won’t have gates opening when they shouldn’t or vibrating closed in the middle of your job. And if it’s in a tight spot, opening the valve doesn’t require 4-inch clearance beside the duct.
Better Fit with Quick-Change Fittings
Sometimes you don’t want to connect a hose permanently. Maybe a couple machines have to share a hose, or leaving the hose in place all the time creates a tripping hazard. We designed the fitting of the FULLThrottle to mate to every 4” quick-connect coupler we could find. No matter what brand of quick-change coupling you have on your hose, it will fit the FULLThrottle.
The taper that fits quick-change couplers also makes permanent installation of flexible hose easier. With a 2-inch clamping length (more than twice the clamping area of most other blast gates) and two tapered sections, you’ll always get a good seal, no matter what brand or style of flexible 4” hose you’re using. If you need a firmer mount than just your ductwork or hose, we offer a Rack-It mounting bracket that attaches to the blast gate in seconds and provides a solid mount to the wall or ceiling.
Like all Woodpeckers products, FULLThrottle blast gates are proudly made and carefully inspected in our Strongsville, Ohio, manufacturing facility (just south of Cleveland). Save with special introductory pricing now through June 1, 2021. FULLThrottle Blast Gates are expected to ship late August 2021.
Credit Card Policy: Please note; if you're paying by credit card, you will not be charged until your order is ready to ship. However, Paypal and other payment services may charge you at the time the order is placed.
|Country of Manufacture||United States|
