Woodpeckers Precision Woodworking T-Squares

SKU
PRECISION-WOODWORKING-T-SQUARES GROUP

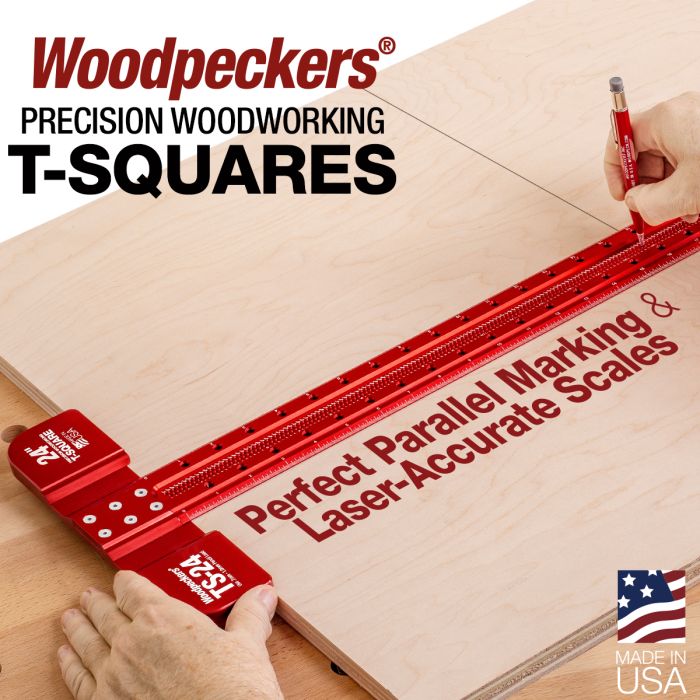

Striking lines parallel with the edge of your stock couldn’t be easier, once you have a Woodpeckers Precision T-Square in your shop.  The beam has a lip that rests on the top surface of your stock, preventing the tool from rolling like many T-squares. Precision machined scribing guides are spaced every sixteenth-inch down the length of the blade.  Just drop in the point of a mechanical pencil and scribe a perfectly parallel line by holding the pencil in one hand and sliding the T-square with the other.  In addition to the scribing guides, there are ¼” diameter holes on 1” centers, ideal for laying out shelf pins.

Grouped product items
Product Image Product Name Price
Precision Woodworking T-Square - 32 Inch with Rack-It Precision Woodworking T-Square - 32 Inch with Rack-It SKU: TS-32-20

Add to Wish List Add to Compare
$169.99
Precision Woodworking T-Square - 24 Inch with Rack-It Precision Woodworking T-Square - 24 Inch with Rack-It SKU: TS-24-20
THIS ITEM IS CURRENTLY ESTIMATED TO SHIP WITHIN 4-6 WEEKS

Add to Wish List Add to Compare
$139.99
Precision Woodworking T-Square - 12 Inch with Rack-It Precision Woodworking T-Square - 12 Inch with Rack-It SKU: TS-12-20

Add to Wish List Add to Compare
$119.99
Precision Woodworking T-Square - 600mm with Rack-It Precision Woodworking T-Square - 600mm with Rack-It SKU: TS-600-20

Add to Wish List Add to Compare
$139.99
Precision Woodworking T-Square Rack-It Only Precision Woodworking T-Square Rack-It Only SKU: TS-RI-LG-20
Fits all previous Woodpeckers 12", 24", 600mm and 32" T-Squares.

Add to Wish List Add to Compare
$14.99

Laser-Accurate Scales, Parallel Scribing Guides and Solid Perpendicular Support

Each Woodpeckers T-Square consists of a laser engraved aluminum blade matched to a precision machined beam. The two critical components are secured together with either 4 or 6 stainless steel screws (depending on which blade length you choose).  A slight offset between the holes in the blade and the threads in the beam put the two under constant tension. This design delivers an angular precision of ±.02 degrees (.004” per foot). It delivers top notch performance yet allows the blade to be replaced should it be damaged.

Two support lips machined into the beam prevent tipping and rolling. The blade has scribing guides every sixteenth-inch.  Place the tip of a mechanical pencil in the hole, slide it along your work piece and lay down lines exactly parallel to the edge of your stock.

The edges of the blade are beveled 30°, putting the scale markings right down next to your stock, eliminating parallax error. The scales are laser-engraved to a tolerance of ±.004" total accumulated error. The white engraving on our famous “Woodpeckers Red” anodized finish delivers a very readable contrast, even for older eyes or poor lighting conditions. Additional 1/4" holes are machined on 1" centers for marking shelf pin locations. Each T-Square is delivered with a wall-mountable Rack-It™ to keep your Precision T-square right in plain sight and always ready for the next project.

We offer four versions of our T-square:  12", 24", 600mm and 32". The 12" size is ideal for work with solid lumber and smaller cabinet parts. The 24", 600mm and 32" are better suited for work with sheet goods, larger cabinet parts, entertainment centers and bookcases.

Like all Woodpeckers products, these T-squares are proudly machined and carefully inspected in our Strongsville, OH facility, just south of Cleveland.

More Information
Country of Manufacture United States
