Woodsmith Wall-Hanging Display Shelf Plan

SKU
WOODSMITH-WALL-HANGING-DISPLAY-SHELF-GROUP

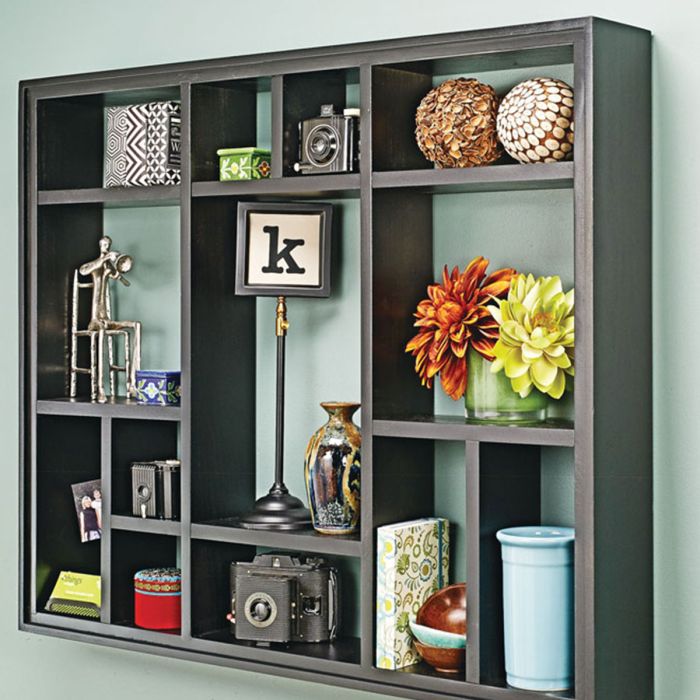

Whether you want to showcase a prized collection or an assortment of souvenirs gathered from family vacations, this shelf has things covered. Its subtle styling allows you to display cherished items without stealing the show. And the best part is that it can easily be built in a weekend. The whole unit is nothing more than an inner case held together with rabbets, dadoes, and screws and wrapped in an outer frame. A groove formed at the back edges of the frame parts creates a unique “invisible” mounting system. Each of the shelves has narrow slots routed on the ends that slip over shelf pins. This allows you to change the layout quickly to accommodate various sizes of items.

We offer the Woodsmith Wall-Hanging Display Shelf plan as a downloadable PDF or a printed format that we ship to you.

Grouped product items
Product Image Product Name Price
Woodsmith Wall-Hanging Display Shelf Standard Plan – 8.5” x 11” PDF Download Woodsmith Wall-Hanging Display Shelf Standard Plan – 8.5” x 11” PDF Download SKU: WS22218PL
Plans will be emailed to you, please allow approximately 1 hour for processing. Phone orders cannot be accepted.

Add to Wish List Add to Compare
$9.95
Woodsmith Wall-Hanging Display Shelf Standard Plan – 8.5” x 11” Print (Shipped to You) Woodsmith Wall-Hanging Display Shelf Standard Plan – 8.5” x 11” Print (Shipped to You) SKU: WS22218PLPR

Add to Wish List Add to Compare
$17.15

Create a home for all of your treasures with this easy-to-build shelf unit. The adjustable shelves make customizing the arrangement a breeze.

Step-by-step instructions, exploded views, materials list, and more—these plans have everything you need to build your own Wall-Hanging Display Shelf.

What you get (Downloadable PDFs):

Standard Plan:

  • 8.5” x 11” PDF of 5 printable (digital) pages of step-by-step instructions
  • 15 full-color exploded views, photos, and illustrations
  • Cutting diagram and materials list
  • Retail sources for hardware and supplies



What you get (Printed & Shipped):

Standard Plan:

  • 5 pages of step-by-step instructions
  • 15 full-color exploded views, photos, and illustrations
  • Cutting diagram and materials list
  • Retail sources for hardware and supplies
  • 8.5” x 11” print shipped to you
