Woodsmith Band Saw Template Jig Standard Plan & Premium Shop Drawings

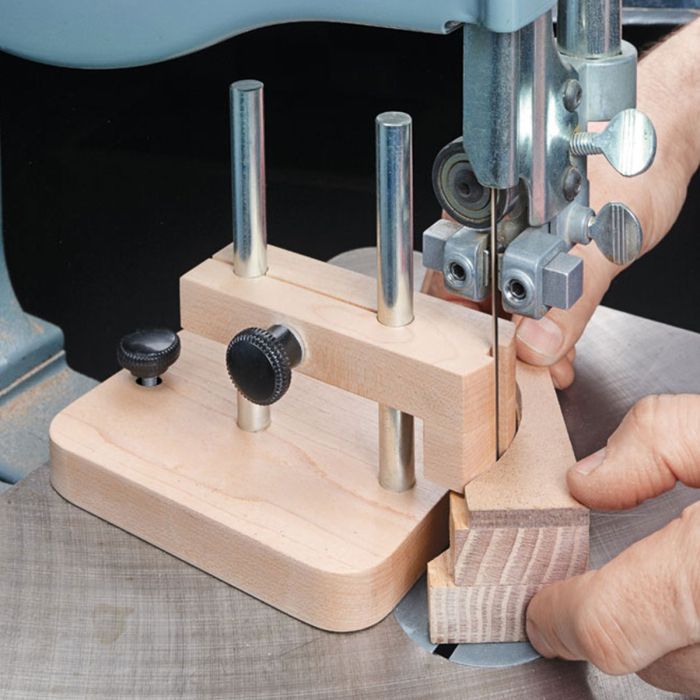

Whenever you have a project that calls for identically shaped contoured parts, a template and this template jig can quickly rough out multiple parts on the band saw. And after the parts are cut, you can clean up the cut using a flush trim bit in your router table. The trick is to use a jig to help guide the workpieces through the blade. The simple jig you see here does the job. It works because the blade is nestled between two contact points on the curved guide. These points guide the template (and workpieces) as you cut.
You can purchase the Woodsmith Band Saw Template Jig standard plan or the supplemental premium shop drawings as a downloadable PDF or in a printed format that we ship to you. We highly recommend purchasing both the standard plan and the supplemental premium shop drawings for more in-depth instructions and greater detail.
Cutting multiple, identically shaped parts has never been easier. This simple jig is the key.
Step-by-step instructions, exploded views, materials list, and more—these plans have everything you need to build your own Band Saw Template Jig.
What you get (Downloadable PDFs):
Standard Plan:
- 8.5” x 11” PDF of 6 printable (digital) pages of step-by-step instructions
- 20 full-color photos, illustrations and exploded views
- Detailed instruction for getting great results
- Materials list and cutting diagram
- Retail sources for hardware and supplies
Premium Shop Drawings:
- 11” x 17” printable PDF
- More detailed drawings of every part and every assembly that supplements the standard plan
- More exploded views for a better understanding of the project
What you get (Printed & Shipped):
Standard Plan:
- 6 pages of step-by-step instructions
- 20 full-color photos, illustrations and exploded views
- Detailed instruction for getting great results
- Materials list and cutting diagram
- Retail sources for hardware and supplies
- 8.5” x 11” print shipped to you
Premium Shop Drawings:
- More detailed drawings of every part and every assembly
- More exploded views for a better understanding of the project
- A large, 24” wide print on premium paper shipped to you
