Woodpeckers Slab Flattening Mill Pro

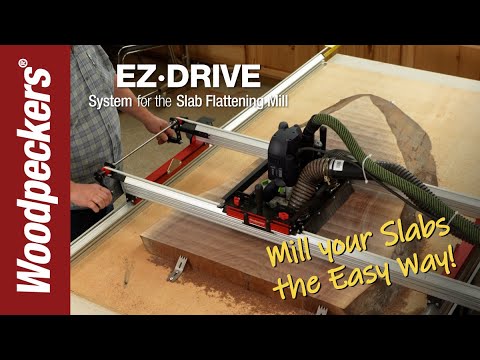

More videos are available in the Video tab below.
Imagine being able to mill a flat face on a live edge slab over 4-feet wide and up to 3-3/8" thick without having to shim the rails or your work piece. Or go the other way and imagine milling something just a fraction of an inch thick, again without shimming either your stock or the rails. Imagine milling slabs with virtually all the shavings being captured by your dust collector. It’s time to stop imagining and start milling with Woodpeckers NEW Slab Flattening Mill PRO. Working with feedback from thousands of Slab Flattening Mill customers we’ve redesigned the router carriage with a greater thickness range and integrated dust capture right at the source. The “PRO” details don’t stop with the feature-packed new carriage. We also extended the rails, increasing the standard width capacity to a massive 48-1/2" wide (using a 2” cutter…even more with a larger bit).
Slab Flattening Mill Pro
The hottest trend in interior design these days is live edge slabs. And, why not? The natural curves of the trunk give an organic feel. The crazy grain patterns in crotches and burls are eye-catching. Even cracks that would have sent lumber to the burn pile just a few years ago are being controlled and enhanced with butterfly patches and epoxy inlays. However, slabs present some challenges in the shop. Overall width and weird grain changes make the use of a jointer and thickness planer impractical if not impossible. But now you can accurately flatten live-edge slabs and other oversized stock faster and easier than you ever thought possible.

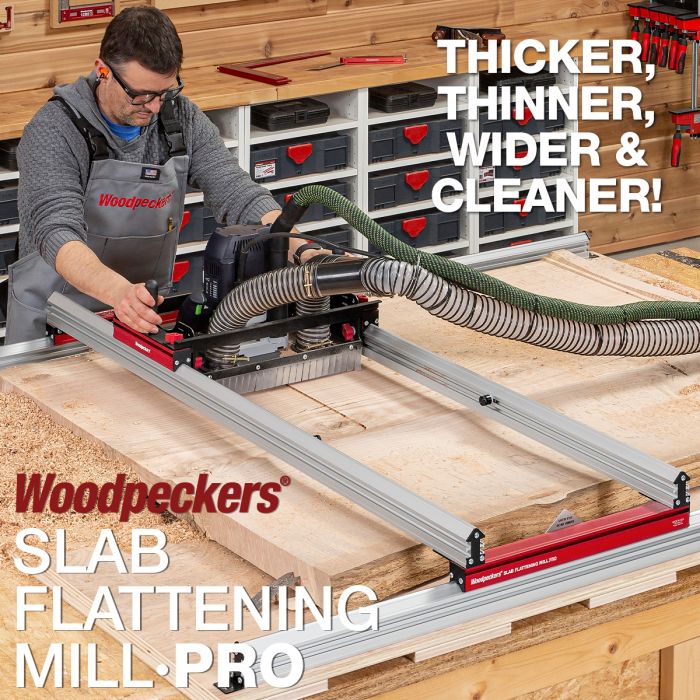

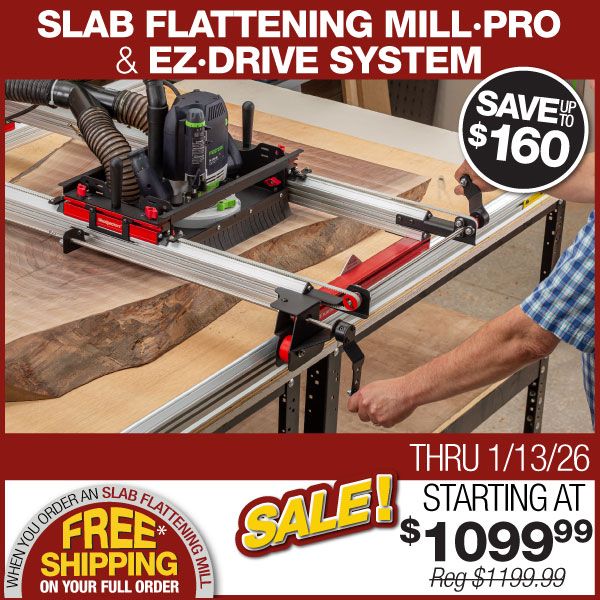

Woodpeckers Slab Flattening Mill PRO guides your router over your slab in a controlled plane. Since you’re using a router instead of a planer-style cutterhead, tear-out is minimal…and thanks to our uniquely engineered rails and enhanced solid steel carriage, the surface will only need light sanding afterwards. The router carriage is the main feature that sets the Slab Flattening Mill PRO apart from the earlier Slab Flattening Mill. The new carriage adjusts in height by a full 2-1/2". Depending on your router and router bit, you can work on stock just a fraction of an inch thick or up to 3-3/8” without ever shimming either the rails or the slab.
Using the Slab Flattening Mill-PRO is as easy as sliding your router across the slab and back, moving over and repeating until you’re done. This process produces lots of shavings. Judging by the number of customers who added the optional dust collection shroud to the original Slab Flattening Mill, dust collection is a highly sought-after feature. So, we decided to make it an integrated part of the new carriage. The twin pick-up points and rugged, full-surround curtain capture well over 90% of all shavings and dust.
Don’t beat yourself up if you bought the original and now love the features of the PRO…the Upgrade Kit puts the new router carriage on your existing rails. We also offer a range of surfacing router bits including ones with interchangeable carbide tips. For edge milling we offer down-cut solid carbide spiral bits in several diameters and cutting lengths.
Just like the original, you can get the Slab Flattening Mill PRO in either a Basic or Extended configuration. The Basic includes one pair of base rails which gives you a maximum slab length of 58". The Extended adds a second set of rails, extending the maximum slab length to 134" (that’s right…over eleven feet!)
Like all Woodpeckers products, the Slab Flattening Mill PRO is precisely machined and carefully inspected in our Strongsville, Ohio factory (just south of Cleveland). Don’t put off that natural edge project you’ve been dreaming about any longer. Order your Woodpeckers Slab Flattening Mill-PRO today!
|Country of Manufacture||United States|
Slab Flattening Mill - FAQ
Q: Can I expand the overall dimensions of the Slab Flattening Mill?
A: Yes, you can purchase extension rails in varying lengths of 24”, 48”, 72”, and 76”.
Q: Is there a way to increase the thickness of a slab I can mill?
A: You can secure 2”x4” or 4”x4” lumber to the base and then secure the base rails to the lumber which allows you to mill thicker slabs.
Q: Can I order a specific length of V-Rail?
A: Unfortunately, we are not able to provide any other length than what is advertised on our website.
Q: What is the difference between the Board Mill, Slab Flattening Mill, and the Slab Flattening Mill PRO?
A: The board mill is designed to be used for flattening and milling thinner boards from ¾” to 1-¾” thick with a width capacity of 18” and length of 55-¾”. The Slab Flattening Mill can mill slabs up to 3-7/16” and the minimum thickness depends on the travel of the router and length of the blade. The Slab Flattening Mill can mill boards up to 40-¾” in width and 58-⅜” in length. The Slab Flattening Mill PRO is able to mill slabs and boards as thin as ¾” and as thick as 3-3/8''. With a capacity of 49” in width and 58” in length. The other big difference is that the Board Mill and the Slab Flattening Mill PRO have integrated dust collection with a dust curtain and ports where the Slab Flattening Mill will need to have the Dust Collection Shroud used which can be purchased separately.
