Woodpeckers Saw Gauge


Woodworkers spend hundreds or even thousands of dollars on a table saw then spend hundreds more on high quality saw blades and still get burn marks when doing rip cuts. Even getting accurate results with a miter gauge can be difficult when the blade alignment is off. In most cases this is the result of misalignment between the miter slot, fence and blade.

Grouped product items
Product Image Product Name Price
Saw Gauge Saw Gauge SKU: SG-WP

Add to Wish List Add to Compare
Saw Gauge - (no dial indicator) Saw Gauge - (no dial indicator) SKU: SG-WP-ONLY

Add to Wish List Add to Compare

Woodpeckers Saw Gauge

For a perfect cut, the saw blade and rip fence must be dead parallel to the left hand miter gauge slot. The most reliable and accurate way to do this is with a dial indicator and tool that rides perfectly up and down the miter slot.

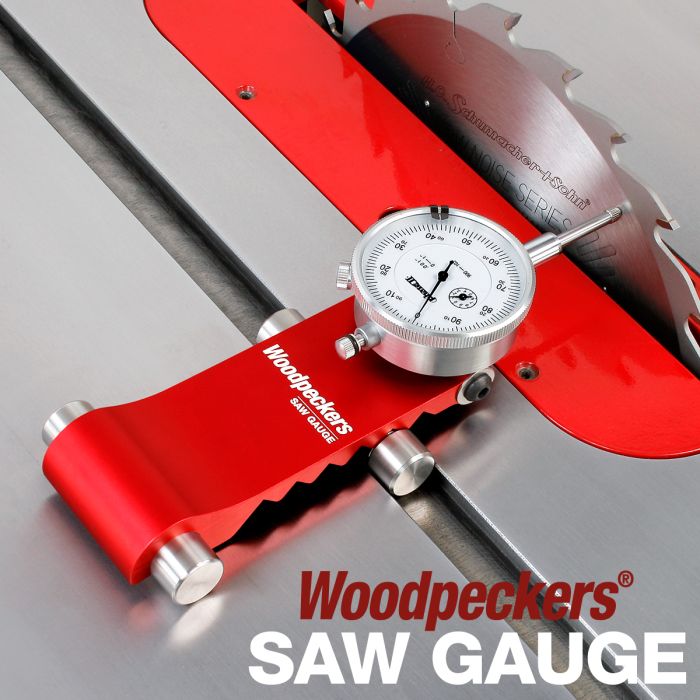

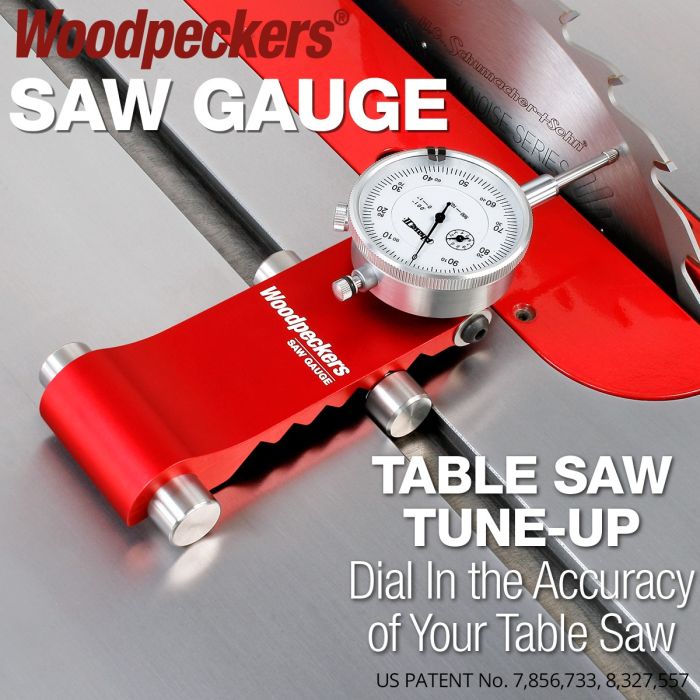

The Woodpecker Saw Gauge is engineered to expertly satisfy this need. It's the first alignment tool that automatically adjusts to the width of the miter slot through the use of three precision ground steel pins. Regardless whether the slot is 5/8” wide like many older saws, 3/4” wide like most current models or even somewhat over-sized; this unique arrangement will ensure a perfect fit and smooth traveling up and down the miter slot. No tools, no adjustments, just instant alignment.

Another exclusive feature is its ability to be set one distance to align the blade then in an instant be reset to a different distance for checking the fence and back to the exact original location for comparison measurements. No knobs, no tools, no recalibration.

All the parts of the Woodpecker Saw Gauge are made in the U.S.A. except for the dial indicator which is imported. Includes fitted storage case.

Saw Gauge - FAQ

Q: What is the overall capacity of the Saw Gauge?

A: The overall capacity of the Saw Gauge is 6-1/2”.
