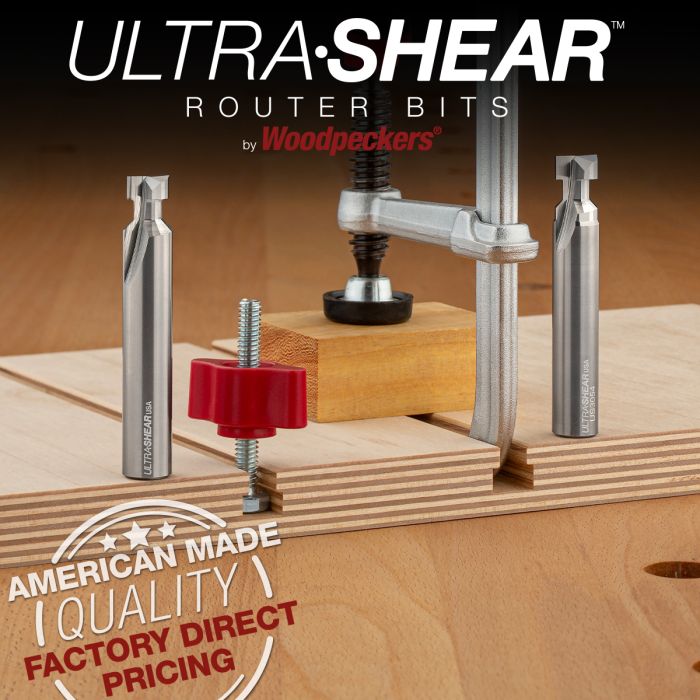

Solid Carbide T-Slot Bits 2-Flute 1/2" Shank
Build versatile jigs, fixtures and workbenches faster, easier and less expensively than ever before with Ultra-Shear's Solid Carbide T-Slot Router Bits. Adding the convenience of slotted track to a jig or bench used to involve inlaying expensive aluminum track. Those days are over. These bits cut perfect T-slot profiles directly in your material in a single pass (when using an adequate router). No messy epoxy, no tiny screws or bolts…just a perfect fitting, strong T-slot right where you want it. We make two versions. One cuts a 7/16" head slot for 1/4"-20 hardware. The other cuts a slot perfectly sized for track saw track clamps. The Track Clamp Bit (3054) and the 5450TSSC T-Slot Bit are made using our "Super-C" carbide, a grade specifically blended to handle extreme duty in abrasive materials like phenolic, hardwood core plywood and MDF. The 5450TS T-Slot Bit is made with the same premium carbide used in our solid carbide spirals. It cuts exactly the same profile as the 5450TSSC and is perfectly suited to small shop use in creating jigs and fixtures using solid stock and plywood.
FREE SHIPPING on Ultra-Shear Router Bits & Saw Blades.
*US 48 States only. Ultra-Shear brand only. Cannot be combined with other products.
Build Jigs and Fixtures When You Need Them…Not When the T-Track Arrives
The US5450TSSC 7/16" T-Slot Bit cuts slots perfectly matched to 1/4"-20 hex head hardware. Add handles, stops, fences and guides to your jigs and fixtures wherever you need them with hardware you can get anywhere (if you're like the rest of us, you probably already have bags of it in your shop).
The US3054 Track Clamp Bit cuts a profile perfectly matched to the clamps used with track saws. These handy clamps started out as a way to secure track saw guide rails, but they soon became the “go to” clamp for holding stock down to modern workbenches. In jigs and fixtures, they provide a quick and effective clamp that easily moves from jig to jig, unlike screw-down cam-clamps.
Both bits cut the T-profile and a topside chamfer in a single pass. You'll only need to cut a clearance channel if you're using a smaller router (1-1/2HP or smaller). The speed, convenience and economy of cutting T-slots, rather than embedding track, will enable you to build more convenient jigs whenever you need them…without spending more money on extruded track and cam clamps and then waiting for them to arrive.
Like all Woodpeckers products, Ultra-Shear Solid Carbide T-Slot Bits are made right here in our Strongsville, Ohio, facility just south of Cleveland. Don’t settle for inferior quality imported bits to save money. Woodpeckers uses state-of-the-art CNC grinding equipment, the highest quality solid carbide blanks and ultra-fine grinding wheels to produce American-made router bits at extremely competitive prices. We’re confident you won’t find an American-made bit of the same design for less.
| Country of Manufacture | United States |
|---|---|
| Flute | 2 Flute |
| Shank | 1/2" |
