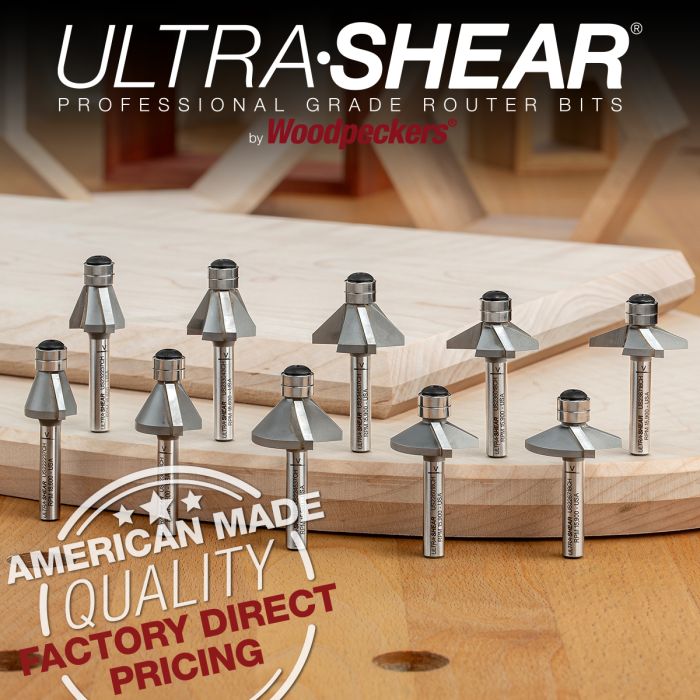

Carbide Tipped Double Bearing Chamfer Bit, 2-Flute and 3-Flute, 1/4" Shank
Ultra-Shear 1/4" Shank Carbide-Tipped Chamfer Bits create a variety of softened edge looks for your projects. While 45° is the established standard, you can create visual interest with both steeper and flatter angles. The 1/4" shank lets you use these bits in just about any router made, from compact cordless trim routers to the hefty 3 hp monsters. Twin pilot-bearings provide consistent cuts even along curved edges. And, at 3/8" diameter, the bearings keep your profile consistent on inside curves as small as 3/16" radius. We offer the same profiles in 2-flute and 3-flute versions. The 2-flute versions perform well and save you some money. The 3-flute versions provide more cuts per inch…or you can speed the job up with an increased feed rate and maintain the same CPI. The chamfer bits come in 22-1/2°, 30°, 45°, 60° and 67-1/2° bevel angles.
FREE SHIPPING on Ultra-Shear Router Bits & Saw Blades.
*US 48 States only. Ultra-Shear brand only. Cannot be combined with other products.
American Made Quality at Factory Direct Pricing
You may have noticed those are the angles for 4-, 6- and 8-sided miters. Machining miters on a router table delivers better, tighter joints than trying to dial in the angle on your table saw. The angle accuracy is machined into the tooling. With complementary angles for the 6- and 8-sided miters, you have the option to run your material horizontally or vertically. See the chart for maximum material thickness for each angle. These bits are ideal for jewelry boxes and other small casework.
Don’t settle for inferior quality imported bits to save money. Ultra-Shear uses state-of-the-art CNC grinding equipment, the highest quality solid carbide blanks, ultra-fine grinding wheels and skilled Northeast Ohio machinists to produce American-made router bits at extremely competitive prices. The days of paying extra for middle-man markups are over. Buy direct from the manufacturer and pocket the savings. We’re confident you won’t find an American-made bit of the same design for less.
| Country of Manufacture | United States |
|---|---|
| Shank | 1/4" |
WARNING: Wood Dust created by Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection.
| SKU | Bit Description | Horizontal Depth of Cut | Vertical Width of Cut |
| US222237CH | 2-Flute, 22-1/2° | 3/8" | 1/8" |
| US223043CH | 2-Flute, 30° | 7/16" | 3/16" |
| US224537CH | 2-Flute, 45° | 3/8" | 3/8" |
| US226018CH | 2-Flute, 60° | 3/16" | 3/8" |
| US226718CH | 2-Flute, 67-1/2° | 3/16" | 3/8" |
| US232237CH | 3-Flute, 22-1/2° | 3/8" | 1/8" |
| US233043CH | 3-Flute, 30° | 7/16" | 3/16" |
| US234537CH | 3-Flute, 45° | 3/8" | 3/8" |
| US236018CH | 3-Flute, 60° | 3/16" | 3/8" |
| US236718CH | 3-Flute, 67-1/2° | 3/16" | 3/8" |
