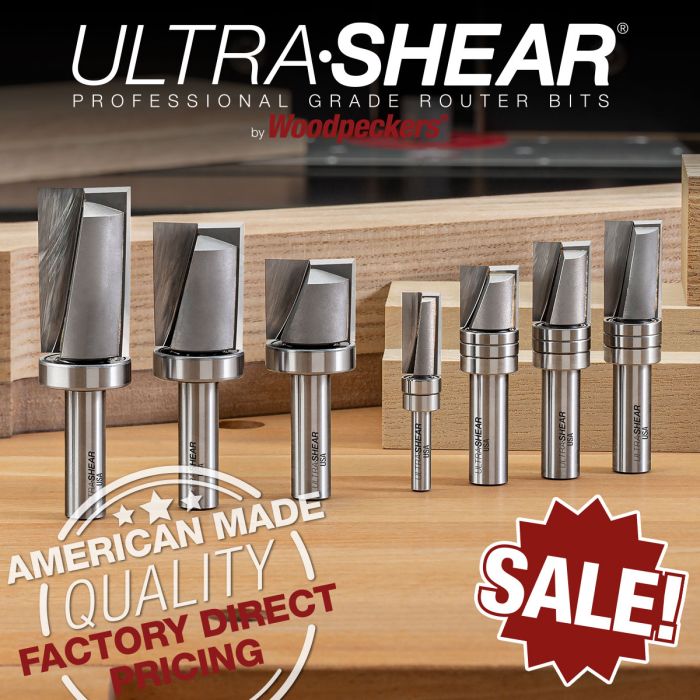

2-Flute, Carbide Tipped, Plunging Pattern Bit
Ultra-Shear's new Plunging Pattern Bits have two advantages over all other carbide-tipped pattern bits on the market. Typical carbide-tipped pattern bits struggle with plunging cuts because the ends aren’t designed to cut…just the sides. And most have the carbide brazed on straight up and down. But, Ultra-Shear’s new Plunging Pattern Bits have an end designed to cut and the cutting edges have a shear angle.
Most other carbide-tipped pattern bits have a narrow strip of carbide at the edge. That makes a straight plunge cut somewhere between tricky and impossible. But the carbide on Ultra-Shear’s new bits extends inward to the center of the bit and is ground to a cutting edge on the end. Plunge cuts leave a clean bottom with no “nub” in the middle and feeding the bit into your stock is smooth and easy.
American Made Quality at Factory Direct Pricing
These bits are multi-tasking workhorses. Their plunging performance makes them the ideal choice for mortising. You get perfectly straight sidewalls and a flawless bottom.
With the range of diameters and cut lengths available, you’ll find the right size for all your pattern routing projects. The range begins with a 1/2" diameter bit with 1" cut length. That one is 1/4" shank, all the rest are 1/2" shank. There are 3 cut lengths of 3/4" diameter; 3/4", 1", and 1-1/4". And there are 3 cut lengths of 1-1/8" diameter; 1", 1-1/2" and 2". All sizes deliver peak performance in pattern routing. The shear angle of the cutting edges delivers exceptionally clean cuts, even through grain switchbacks.
The fully-ground end and shear-angle edge also make these bits ideal for rabbets, dados and grooves. The bottom surface (cut by the top of the bit) looks as if it has been cut by a finely tuned hand plane.
Don’t settle for inferior quality imported bits to save money. Ultra-Shear uses state-of-the-art CNC grinding equipment, the highest quality carbide, ultra-fine grinding wheels and skilled Northeast Ohio machinists to produce American-made router bits at extremely competitive prices. The days of paying extra for middleman markups are over. Buy direct from the manufacturer and pocket the savings. We’re confident you won’t find an American-made Plunging Pattern Bit of the same design for less.
| Country of Manufacture | United States |
|---|---|
| Flute | 2 Flute |
WARNING: Wood Dust created by Drilling, sawing, sanding or machining wood products can expose you to wood dust, a substance known to the State of California to cause cancer. Avoid inhaling wood dust or use a dust mask or other safeguards for personal protection.
