Spline Jig

SKU
SPLINE-JIG-GROUP

More videos are available in the Video tab below.

Strengthen your miter joints with Woodpeckers Spline Jig. A normal mitered corner lacks the long-grain to long-grain contact needed for a strong joint. Since it isn't completely end-grain to end-grain, it will usually hold together for a while, but it's weak and probably won't survive seasonal changes.  You can make the joint rock solid and add a design element at the same time by adding splines across the miters. Woodpeckers Spline Jig makes it simple to add splines to all kinds of mitered joints using either your table saw or router table. Just set the stops to position the cut where you want to add a spline, drop your pre-glued miter project in the jig and make the cut. Glue in the spline and just that quickly, you've made an attractive joint that will last for generations.

Grouped product items
Product Image Product Name Price
Spline Jig Spline Jig SKU: SPLINE-23

woodcraft coming soonsanta gift


Add to Wish List Add to Compare
$159.99
Molded Fip Stop - 4 pack Molded Fip Stop - 4 pack SKU: 13-MLFSTOPX4

Add to Wish List Add to Compare
$39.99
Hold Down Clamp, Pivot, Non-Slip - 4 pack Hold Down Clamp, Pivot, Non-Slip - 4 pack SKU: HDCG-PIVX4
Sold Out! Reserve Yours Today! Expected to Ship January 22, 2025.

Add to Wish List Add to Compare
$39.99
Molded Flip Stop - one (1) each Molded Flip Stop - one (1) each SKU: 13-MLFSTOP

Add to Wish List Add to Compare
$11.99
Hold Down Clamp, Pivot, Non-Slip Hold Down Clamp, Pivot, Non-Slip SKU: HDCG-PIV
Sold Out! Reserve Yours Today! Expected to Ship January 8, 2025.

Add to Wish List Add to Compare
$11.99

Works with Both Your Table Saw and Router Table!

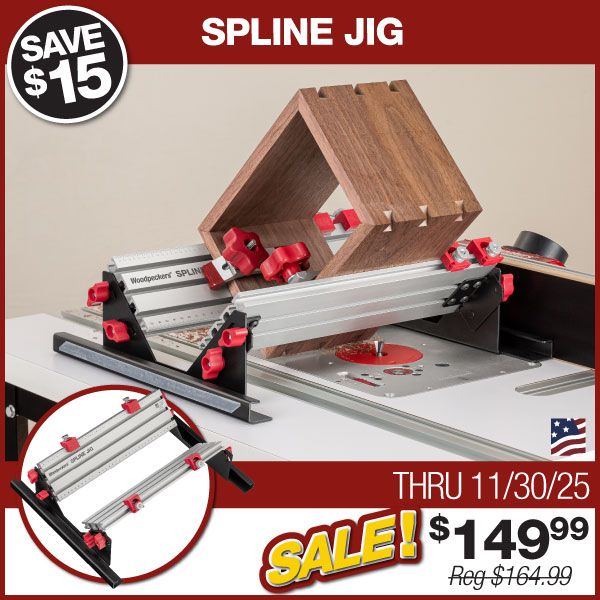

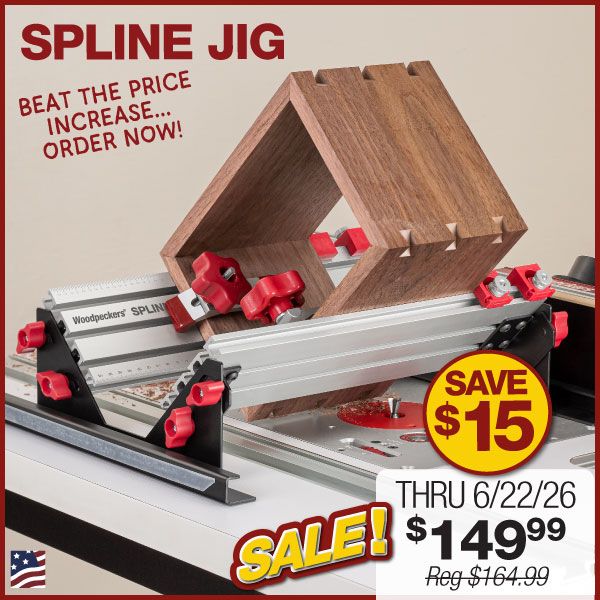

Woodpeckers Spline Jig starts with two sections of our Super Track. The powder-coated steel legs hold the tracks square to each other at two different height settings. The wider setting allows your project to ride just barely above the machine table. It's perfect for projects as narrow as 1/2" and up to 16" wide. When your project exceeds 16", just move the tracks inward to the alternate position and now you can add splines to your long projects. The jig includes 4 molded flip stops to make it simple to keep your splines aligned.

UHMW glide strips line the bottoms and edges of the legs, reducing friction and protecting your machine's table and fence from scratches. Just position your fence to put the kerf where you want it, keep a little pressure against the fence and guide your project through the saw blade. There's no simpler way to add strength and stability to your joinery.

To jazz up your spline joints with either wider splines or dovetail splines, move to your router table. Now you can use straight bits to cut spline slots 1/4", 3/8", 1/2" or larger. Install a dovetail bit to give your projects the classic look of dovetails. Cut the matching spline stock in two passes using the same bit. For a bold look, make your splines from stock that contrasts with the box material. Or, be subtle and use the same species…then see how long it takes people to figure out they're not regular dovetails! Slots in the Super Track accept the head of a 1/4"-20 hex head bolt. You can use almost any brand or style of hold-down. Our favorite is the Woodpeckers Pivot Clamp, sold separately.

Like all Woodpeckers products, the Spline Jig is precisely machined and carefully inspected in our Strongsville, Ohio, facility just south of Cleveland.

More Information
Country of Manufacture United States

Q: What are the dimensions of the Spline Jig?
A: The overall dimensions are 17” x 14 ¼” x 5 ½”. The outside rails are 17”. The inside rails are 14”. The length of the rails is 14 ¼”. The height is 4 ¾”.

Q: What is included with the Spline Jig?
A: Included are two sections of Super Track with powder coated steel legs that are adjustable to two different height settings and four molded flip stops. Hold down clamps are sold separately.

Q: How are the two different height settings used?
A: The wider setting is used for projects that are ½” to 16” wide, this setting is barely above the table. For projects longer than 16”, move the tracks inward to the alternate position.

Q: What size hex head bolts are compatible with the Super Track?
A: ¼”-20 Hex Head Bolts

Q:  Will the spline Jig work on my router table /table saw?
 A: The Spline jig is compatible with both. It has self-adhesive UHMW guide strips underneath and on the side rails, to help it ride smoothly along the top of your table and against the fence.
