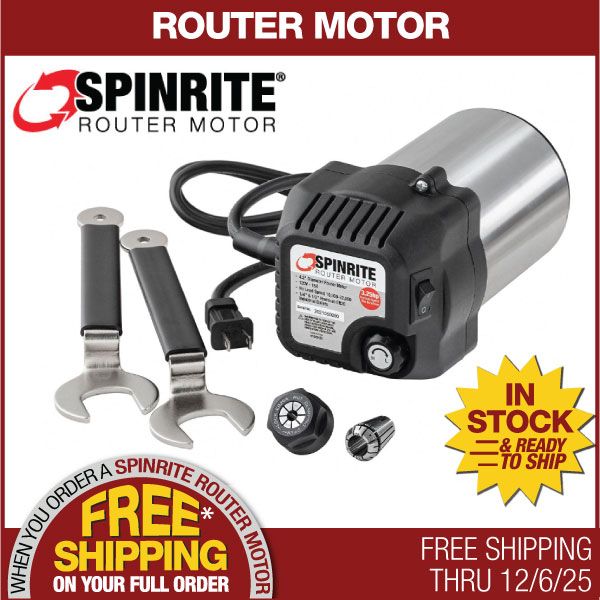

SpinRite Router Motor

SKU
SPINRITE-ROUTER-MOTOR-GROUP

SpinRite™ router motors are built from the ground up to deliver optimum performance in a router lift or a small shop CNC. It starts with industrial CNC-grade ER20 collets, a carefully machined internal taper on the shaft, and a precision collet nut. These three critical components combine to deliver significantly less run-out than the most popular 3HP class routers on the market. Then, there’s infinite speed control from a low of 10,000 rpm to 22,000 rpm. When you turn the Spin-Rite on, you’ll notice the soft-start feature ramps the speed up smoothly, saving wear and tear on both the router and the lift (or gantry). Once it’s at speed, you’ll notice minimal vibration and 75% quieter operation. It all comes together to deliver a better surface finish, less operator fatigue and longer tool life.

Grouped product items
Product Image Product Name Price
SpinRite 3.25HP Soft Start Router Motor SpinRite 3.25HP Soft Start Router Motor SKU: 1015420
(Comes with two collets and one collet nut)

Add to Wish List
$269.99
PRL-V2-420 + SpinRite 3.25HP Soft Start Router Motor PRL-V2-420 + SpinRite 3.25HP Soft Start Router Motor SKU: PRLV2COMBO2
9.25" x 11.75" Plate Size. Fits Woodpeckers Router Tables. Fits 4.2" diameter router motors. Porter Cable 7518 and SpinRite 3.25HP Soft Start Router Motor.
This product has an estimated ship date December 9, 2021.

Add to Wish List
$659.98
PRLV2420-Bench Dog + SpinRite 3.25HP Soft Start Router Motor PRLV2420-Bench Dog + SpinRite 3.25HP Soft Start Router Motor SKU: PRLV2BDCOMBO2
8.25" x 11.75" Plate Size. No Leveling Screws. No Side Plungers. Does not fit Woodpeckers Router Tables. Fits 4.2" diameter router motors. Porter Cable 7518 and SpinRite 3.25HP Soft Start Router Motor.
This product has an estimated ship date December 6, 2021.

Add to Wish List
$659.98

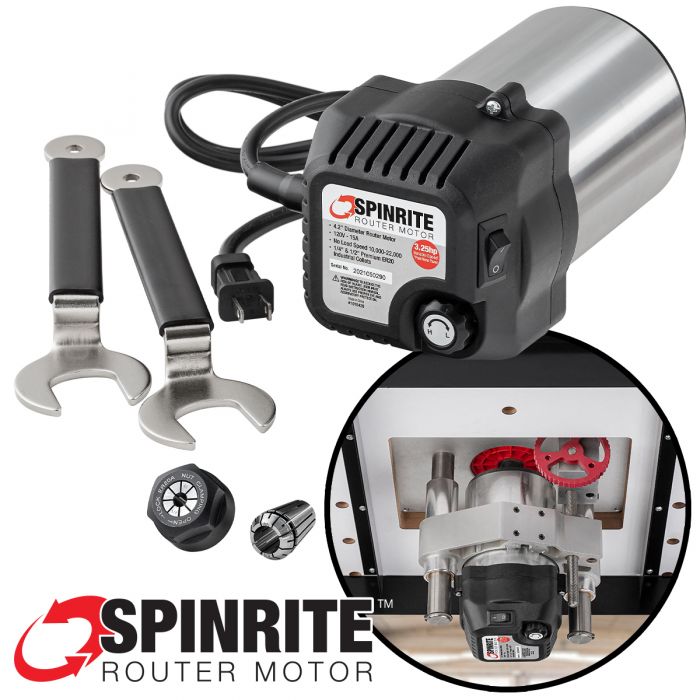

SpinRiteTM Router Motor

Originally developed for metalworking mills, ER-20 collets have become the standard in the industry around the world. Most have 8 segments, compared to the typical router collet with 4 or possibly 6. The closing taper is longer, smoother and ground to a much tighter tolerance. Two collets are included, 1/2" and 1/4". Changing them is a snap, literally. Just snap one out and the next one in. You can get ER-20 collets in dozens of sizes from as small as 1/16" to a maximum of 1/2", in inch and metric sizes. If you’re a typical router user, you may never need anything other than 1/2" and 1/4", but with the ER-20 system, if you find a bit you want in 3/8" or 8mm, you can be sure you can get a collet to fit.

Whether you’re ploughing a tiny 1/16" vee-groove or doing wide raised panel doors, you can always find the right speed for the job. Just dial it in. The electronics that control the motor’s speed also provide the soft-start feature. The collet wrenches included with the SpinRite are offset, so you can reach down below table level to change bits, if necessary. There are no tabs or pins on the 4.2” cylindrical body, making it effortless to mount the motor in most major brands of router lifts, including Woodpeckers PRL V2 420. Even the switch and speed control dial have been positioned optimally for access in lifts and gantries. And, there’s no hand-held base to sit on your shelf and catch dust. This router is built to be part of a routing system, period.

SpinRiteTM router motors carry a one-year warranty against defects in materials and workmanship. Woodpeckers is the exclusive North American distributor for SpinRite, and your point of contact for warranty claims and machine parts and service. With more than 30 years of experience in the router table and lift business, Woodpeckers immediately recognized the logic of a router designed specifically for mounting.

More Information
Country of Manufacture China
Product Manual SpinRite_Router-Motor-3.25hp_Instructions_REV102721a.pdf
