Multi-Function Router Base

SKU
MULTI-FUNCTION-ROUTER-BASE-GROUP

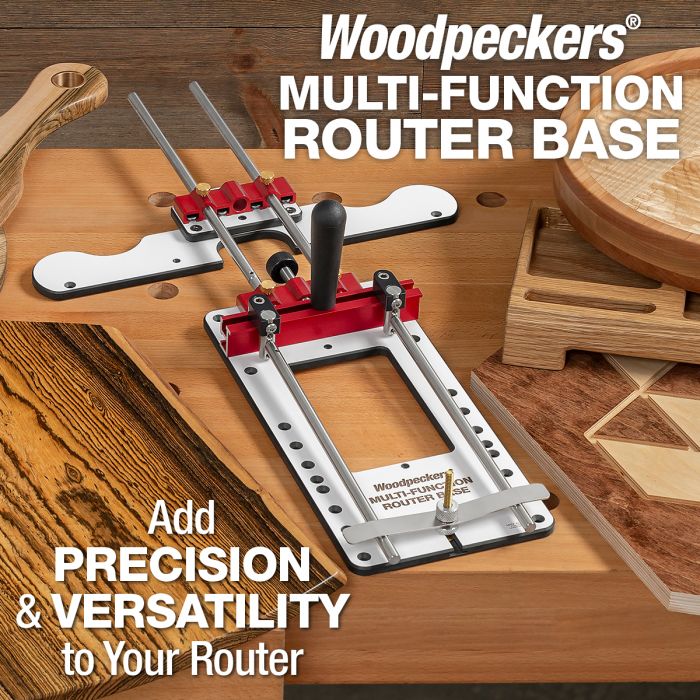

A router on its own is a lot like a draft horse without a harness…a lot of power with no direction. Woodpeckers new Multi-Function Router Base harnesses the power of your router and turns it into an accurate portable milling machine complete with micro-adjustment. The Multi-Function Router Base fits most routers that have through holes for guide rods (and that’s most of the routers on the market). Once mounted you can move the router in either a controlled straight line or a perfect arc. Whether you’re cutting arcs on the edge of a project, mortising, creating decorative patterns, or routing recesses, the Multi-Function Router Base unlocks your creativity and delivers unparalleled accuracy. Let’s look at just some of the functions.

Grouped product items
Product Image Product Name Price
Multi-Function Router Base - Includes 5/16" guide rods and 1 pair of 12" extension rods Multi-Function Router Base - Includes 5/16" guide rods and 1 pair of 12" extension rods SKU: MFRB-516-21
This product has an estimated ship date October 28, 2021.

Add to Wish List
$239.99
Multi-Function Router Base- Includes 3/8" guide rods and 1 pair of 12" extension rods Multi-Function Router Base- Includes 3/8" guide rods and 1 pair of 12" extension rods SKU: MFRB-38-21
This product has an estimated ship date November 1, 2021.

Add to Wish List
$239.99
Multi-Function Router Base - Includes 10mm and 1/4" guide rods and 1 pair of 12" extension rods Multi-Function Router Base - Includes 10mm and 1/4" guide rods and 1 pair of 12" extension rods SKU: MFRB-10-21

Add to Wish List
$239.99
Multi-Function Router Base Guide Rods - 5/16" - 1 pair Multi-Function Router Base Guide Rods - 5/16" - 1 pair SKU: MFRB-R516-21
Not for use as extension rods

Add to Wish List
$19.99
Multi-Function Router Base Guide Rods - 3/8" - 1 pair Multi-Function Router Base Guide Rods - 3/8" - 1 pair SKU: MFRB-R38-21
Not for use as extension rods.

Add to Wish List
$19.99
Multi-Function Router Base Guide Rods - 10mm - 1 pair Multi-Function Router Base Guide Rods - 10mm - 1 pair SKU: MFRB-R10-21
Not for use as extension rods.

Add to Wish List
$19.99
Multi-Function Router Base Extension Rods - 1 pair Multi-Function Router Base Extension Rods - 1 pair SKU: MFRB-EXT-21
Extends the reach from the extension base on all models.

Add to Wish List
$19.99
Multi-Function Router Base Guide Rods - 1/4" - 1 pair Multi-Function Router Base Guide Rods - 1/4" - 1 pair SKU: MFRB-R14-21
Not for use as extension rods.

Add to Wish List
$19.99

Multi-Function Router Base

Edge-Guided Cuts Close to the Router Bit
Setting up a cut guided by the edge of your stock is a simple three step process. Lock the edge guide in one of ten different positions…right at the cutter or up to 8" away. From there you can slide the router along the guide rods until it’s close to your layout line. Then you can dial in the exact location of your cut by moving the router with the micro-adjuster.

Edge-Guided Cuts Away from the Router Bit
If your edge is more than 8" away from the cut, add the extension rods and position the edge guide up to 21" from the cut. Need more? You can add as many optional extension rods as you need. They’re sold in pairs and each pair adds 12" of reach.

Straight Cuts Not Parallel to an Edge
If you need to groove a board on an angle, you can clamp any straight edge to your work to guide the cut. The micro-adjuster eliminates the tedious adjustment necessary when you’re using a standard router base. All you have to worry about is getting the angle of the straight edge correct, the exact position of the cut can be dialed in perfectly.

Cutting Small Arcs and Circles
The base has four locations for the trammel pin, each offering a range of distances to the router bit. Just like the straight cuts, you get “in the ball park” by choosing the axis point, get closer by sliding the router along the guide rods and get to your exact spot by using the micro-adjuster. Then cutting an arc is as simple as engaging the bit and spinning the router around the axis. Working with the axis point closest to the bit you can cut a circle just 3/4" in diameter.

Cutting Large Arcs and Circles
The extension base also accommodates the trammel pin. Now you can position the axis point of your arc up to 22" away from the bit…or even more if you add more extension rods.

Mortising
Two large pins can be installed in the base which allow you to center the base on the edge of your stock. This is a technique you may have seen used by several different drilling and routing fixtures. But here we have a little bit of a twist. By using the micro-adjuster, the bit doesn’t necessarily have to be centered between the pins. This means you can accurately machine mortises wider than the bit you’re using or offset your mortise to create a shoulder.

Woodpeckers Exclusive Features
There are similar router bases on the market, but the Woodpeckers Multi-Function Router Base takes the concept to another level. First, the router mounting system enables you to accurately center your router in the base. We didn’t leave the rods loose on the outboard end, either. There’s a clamp to lock the rods and the router firmly to the base. When using the extension, the trammel pin is perfectly centered in the entire assembly, improving balance and making it easier to rotate. For all applications, the micro-adjuster has a total travel of 1-5/8".

We build the Multi-Function Router Base using solid phenolic plate…a dense, flat, tough material that will stand up to heavy use. All metal parts are stainless steel, anodized aluminum or brass…there’s nothing that will rust. You’ll love the fit and finish on this well-built, well-designed tool. To be sure you order the correct model, you need to know the diameter of the guide rods for your router. We have them in 1/4" 5/16" 3/8" and 10mm, which covers just about every router on the market.

Guide rods are used for mounting the router to the router base.  Extension rods are used for extending the reach from the extension base.  These ARE NOT interchangeable and serve different functions.   Guide rods cannot be used as extension rods, and extension rods cannot be used as guide rods. These parts ARE NOT interchangeable.


FOR THE ROUTER COMPATIBILITY CHART, PLEASE CHECK THE SPECIFICATIONS/FAQ'S TAB.  THIS CHART CAN ALSO BE FOUND IN THE IMAGES FOR THIS PRODUCT.

Like all Woodpeckers products, the Multi-Function Router Base is precisely machined and carefully inspected in our Strongsville, Ohio factory (just south of Cleveland). We’re introducing this tool with special pre-production pricing.  The deadline to order yours is Monday, March 1, 2021. Delivery is scheduled for late July, 2021.

Credit Card Policy: Please note; if you're paying by credit card, you will not be charged until your order is ready to ship. However, Paypal and other payment services may charge you at the time the order is placed.

More Information
Country of Manufacture United States
Product Manual Woodpeckers_Multi-Function_Router-Base_ Instructions_REV072821.pdf

CLICK HERE FOR PROP 65

SPECIFICATIONS:

Minimum cut with Edge Guide:  0" (edge trimming or molding
- Maximum cut with Edge Guide on base:  8"
- Maximum cut with standard Extension Rods:  21"
- Minimum circle with trammel point:  3/4"
- Maximum circle with axis points in base:  8-1/4"
- Maximum circle with Extension Base:  45"
- Micro-Adjuster travel: 1-5/8"

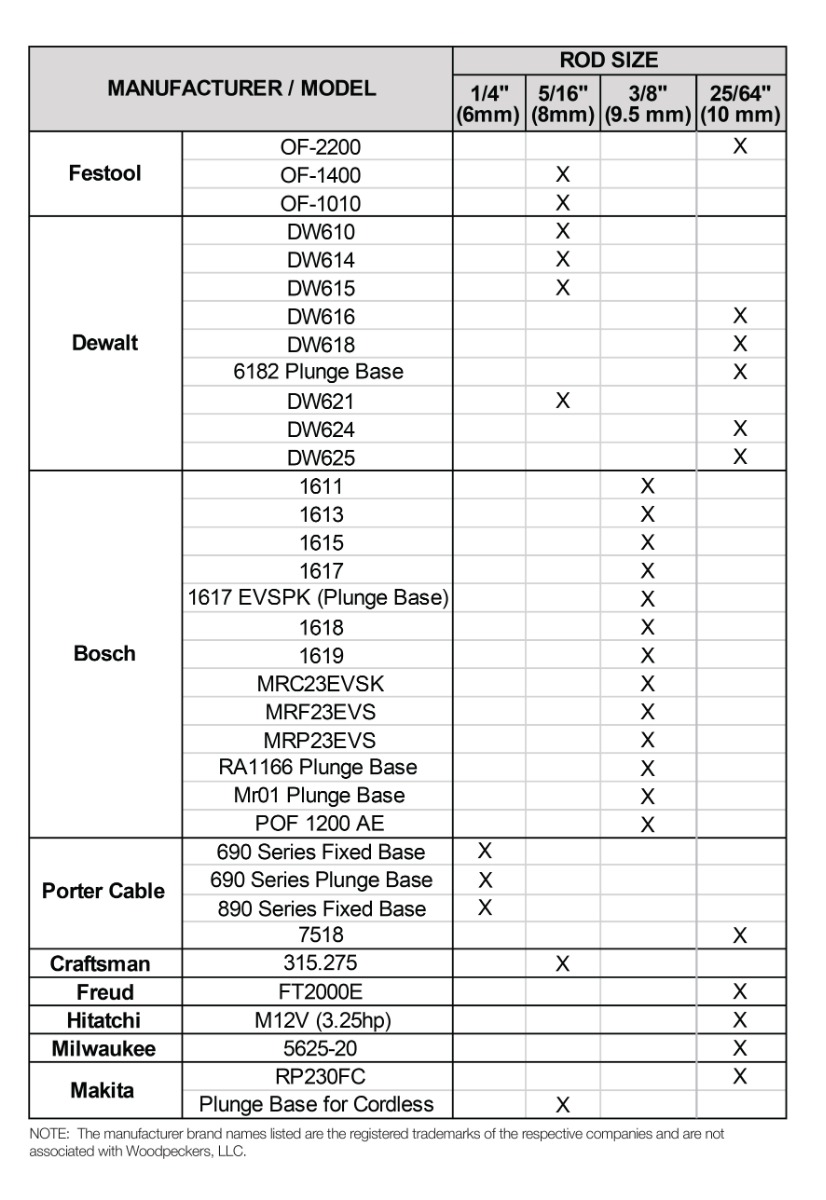

Router Compatibility

This list is not intended to be comprehensive! These are routers that we have specifically tested for compatibility and have listed their appropriate rod size for your convenience. If your router is not on this list, you can determine in a few minutes if the Multi-Function Router Base is compatible.

1: Does your router have holes in the base to accept a pair of guide rods?
2: Do the holes go completely through the base?
3: Will the holes fit one of these sizes: 1/4" (6mm) 5/16" (8mm), 3/8" (9.5mm) or 25/64" (10mm)?

If the answer to all three questions is yes, the Multi-Function Router Base will fit your router.

Measuring the hole size: The surest way to get the correct-sized guide rods is to measure the guide rods that came with your router. If your router has guide rod holes, but did not come with guide rods, you can measure the holes with drill bits. Find the drill bit that will freely pass through the guide rod holes without binding. Order the guide rod size that is equal to or slightly smaller than the drill bit.

MANUFACTURER/MODEL
  ROD SIZE
1/4" (7mm) 5/16" (8mm) 3/8" (9.5mm) 25/64" (10 mm)
Festool
OF-2200       X
OF-1400   X
OF-1010   X
Dewalt
DW610   X
DW614   X
DW615   X
DW616       X
DW618       X
6182 plunge base       X
DW621   X
DW624       X
DW625       X
Bosch
1611     X
1613     X
1615     X
1617     X
1617evspk (plunge base)     X
1618     X
1619     X
MRC23EVSK     X
MRF23EVS     X
MRP23EVS     X
RA1166 plunge base     X
Mr01 plunge base     X
POF 1200 AE     X
Porter Cable
690 Series Fixed Base X     X
690 Series Plunge Base X     X
890 Series Fixed Base X     X
7518       X
Craftsman 315.275   X
Freud FT2000E       X
Hitatchi M12V (3.25hp)       X
Milwaukee 5625-20       X
Makita
RP230FC       X
plunge base for cordless   X
